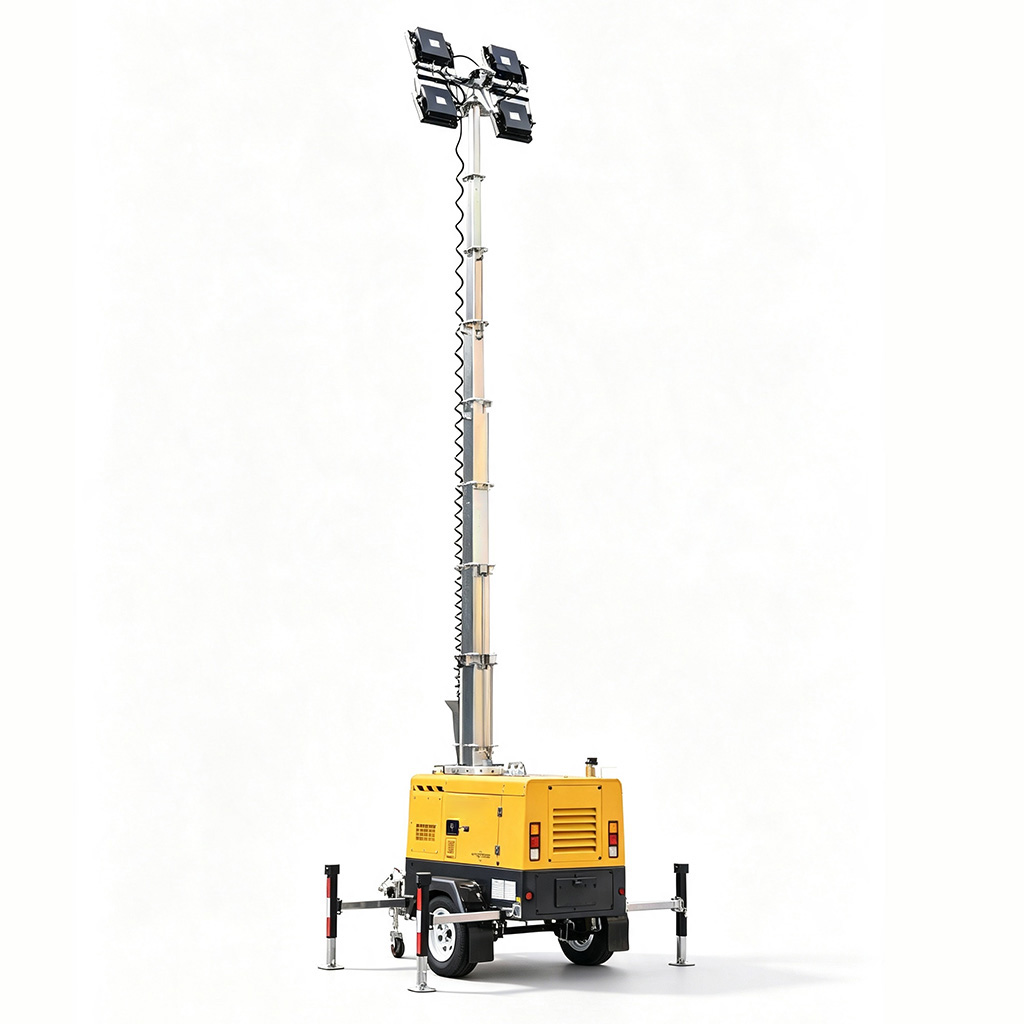

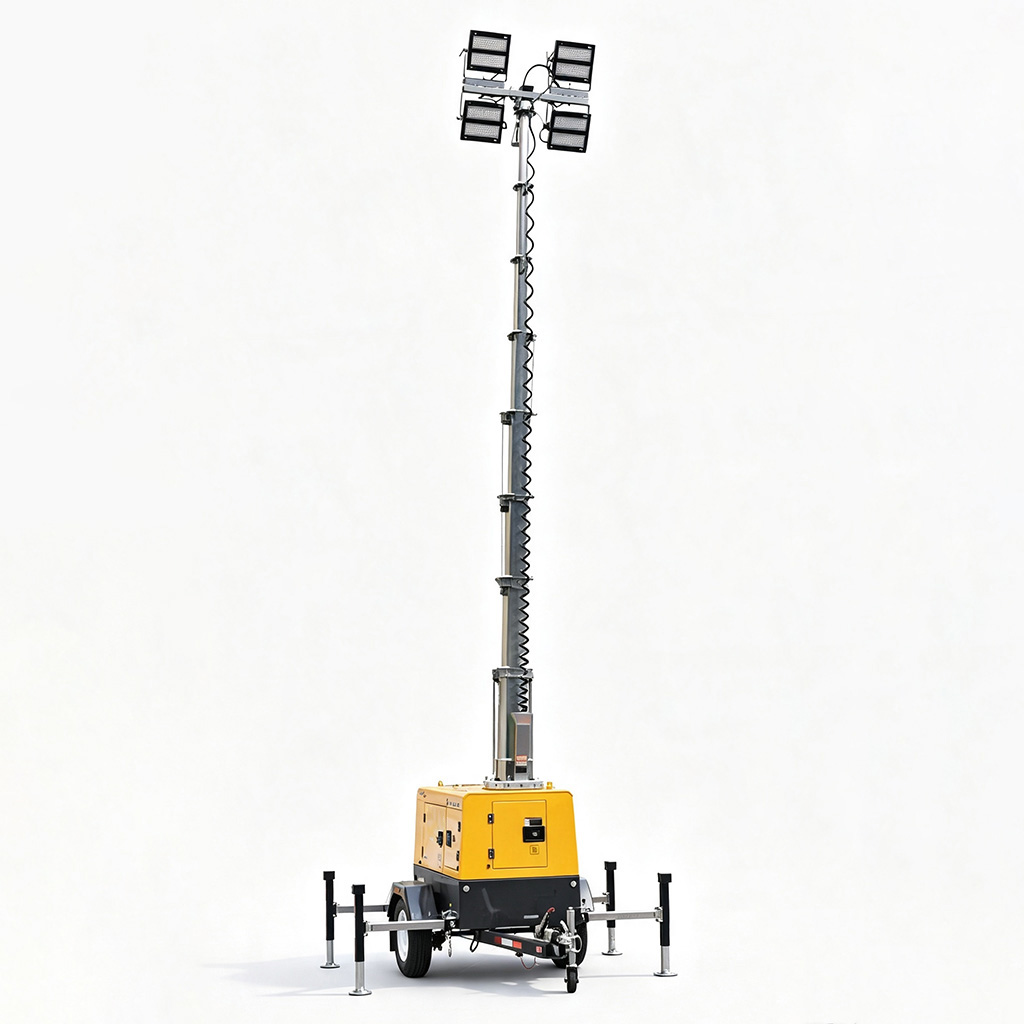

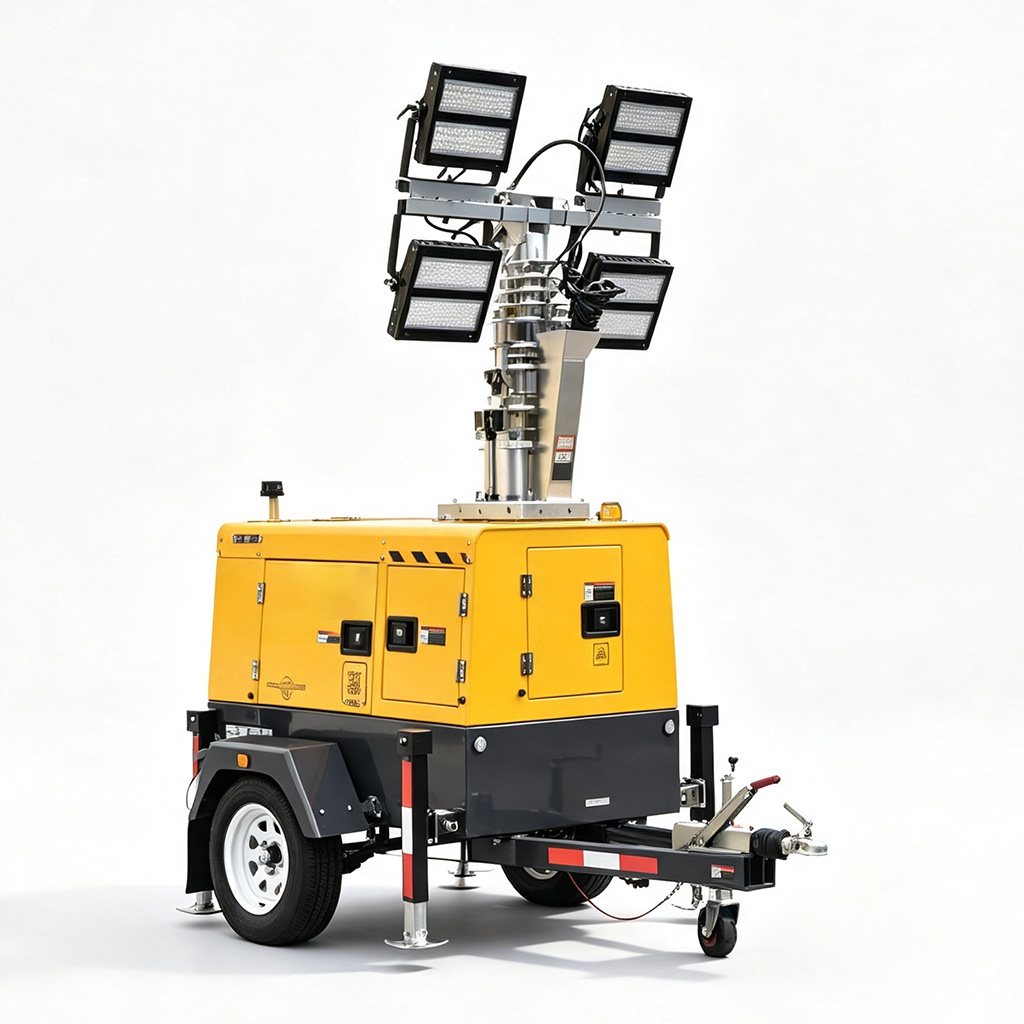

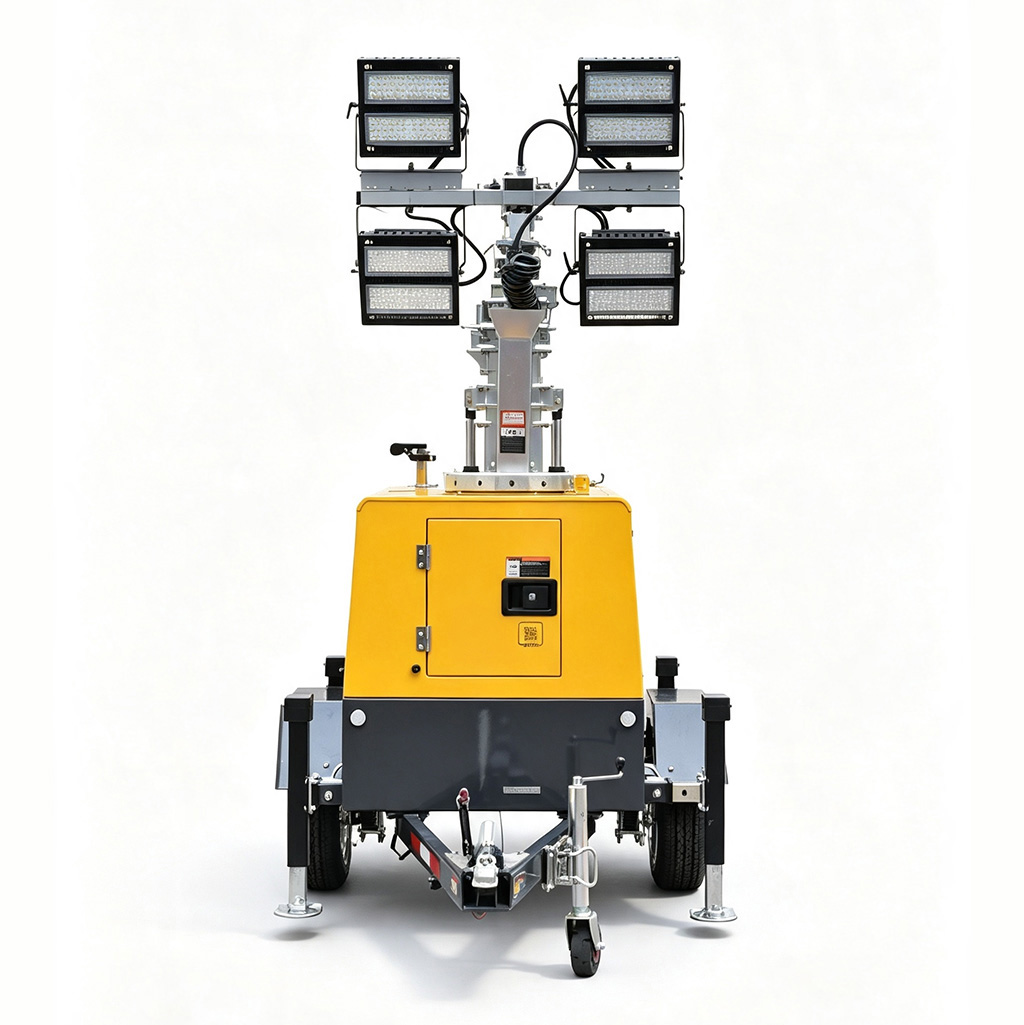

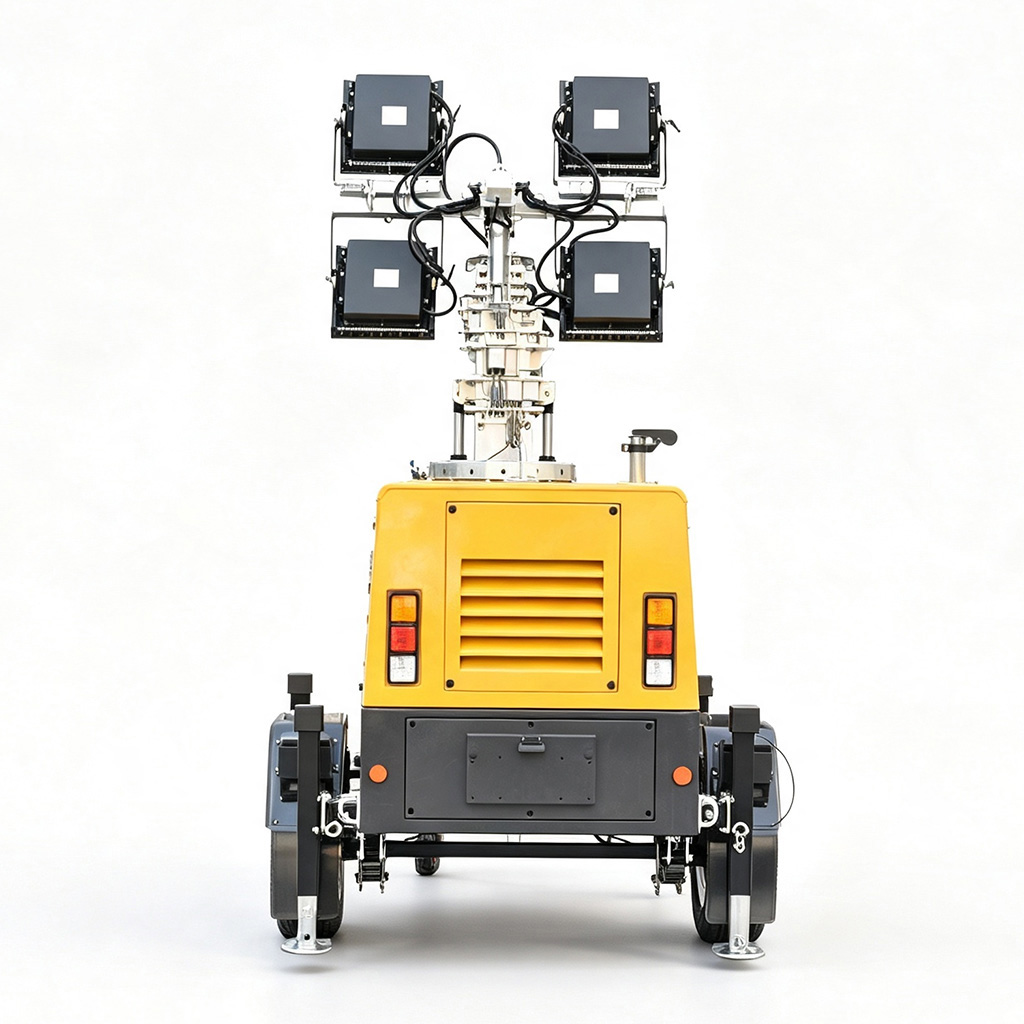

R4T‑KLED is a trailer‑mounted pure‑diesel LED lighting tower, powered by original Kubota engine. It features large‑capacity fuel tank for ultra‑long continuous running, 9‑meter hydraulic mast with 355° electric rotation & 90° electric tilt. Built for heavy‑duty all‑weather outdoor jobs, ideal for infrastructure, mining projects and large rental fleets.
R4T-KLED is a heavy-duty pure diesel mobile lighting tower optimized forlong-hour continuous outdoor illumination. Powered by an authentic Kubota diesel engine, this model focuses on high stability, ultra-long endurance and low fuel consumption, making it a classic cost-effective lighting solution for all-weather night construction. Different from hybrid models, it is fully configured for heavy-duty continuous operation, perfectly adapting to high-frequency use and long-shift job requirements.
Equipped with a flexible hydraulic lifting mast and full electric adjustment system, the R4T-KLED provides large-area, zero-blind-spot lighting with stable brightness output during long-time working cycles. Supported by a large-capacity fuel tank and mature power matching, it effectively reduces refueling frequency and improves on-site construction efficiency. With reliable industrial-grade configuration, it can stably cope with dusty, high-temperature and harsh outdoor environments.
Featuring a standard road-towable trailer structure, the whole machine realizes rapid transfer, fast on-site leveling and convenient container transportation. Widely applicable to infrastructure engineering, road & railway construction, mining sites, municipal night maintenance and equipment rental fleets, it is the most practical continuous-operation lighting tower for medium and large outdoor projects.
The R4T-KLED diesel lighting tower is specially designed for long-hour continuous outdoor working scenarios with no noise and emission restrictions. Thanks to its large fuel tank capacity, stable Kubota power system and heavy-duty continuous operation capability, it is widely adopted for all-weather night construction and large-scale engineering projects.
1. Infrastructure & Transportation Construction Perfect for highway, railway, bridge and tunnel night construction. It supports round-the-clock continuous lighting to speed up project progress for long-cycle infrastructure works.
2. Mining & Oilfield Sites Ideal for open-pit mines, oil fields and remote industrial zones. Adaptable to dusty, high-temperature and harsh field environments with stable long-time operation.
3. Municipal & Public Engineering Suitable for urban road repair, pipeline renovation and large-scale municipal outdoor projects. It delivers consistent high-brightness illumination for long-shift public works.
4. Large-Scale Outdoor Projects Excellent for large yard operations, port logistics terminals and outdoor temporary engineering sites that require multi-hour non-stop lighting.
5. Professional Rental Fleets A cost-effective core model for light tower rental companies. Featuring low fuel consumption, high stability and low failure rate, it fits high-frequency rental and long-term site leasing demands.
The R4T-KLED trailer-mounted lighting tower focuses on long-duration stability and high cost-performance, serving as a classic heavy-duty diesel lighting model for continuous outdoor operation. It combines reliable power endurance, stable lighting performance and low operating costs, perfectly matching the demands of large engineering projects and rental businesses.
1. Durable Kubota Original Power System Equipped with authentic Kubota diesel engine, featuring mature technology, low failure rate and global universal spare parts. It delivers stable 4KW continuous power output, adapting to long-hour uninterrupted operation in harsh outdoor environments.
2. Ultra-long Continuous Working Endurance Comes with a 210L large-capacity fuel tank, greatly extending single refueling working time and reducing frequent refueling on site. With optimized fuel combustion technology, it maintains low fuel consumption during high-load continuous operation, effectively saving operating costs.
3. Full-range High-efficiency Lighting Performance Configured with 9-meter hydraulic lifting mast, supporting 355° electric rotation and 90° electric tilt. The high-power LED lamps provide uniform, high-brightness and wide-area illumination without dead zones, meeting large-scale site lighting demands.
4. Flexible & Fast On-site Deployment Adopts standard road-towable trailer chassis with 50mm ball hitch. Four hydraulic outriggers realize fast leveling and stable fixation on uneven ground. Reserved forklift holes support convenient loading and transportation.
5. High Cost-performance for Rental Fleets With stable performance, low maintenance cost and strong environmental adaptability, it is highly suitable for high-frequency rental scenarios. It features low failure rate and long service life, bringing stable and high economic returns for rental companies.
6. Standardized Export & Transportation Design Unified body size and weight with the series models, supporting efficient container loading. 3 units can be loaded in a 20GP container and 7 units in a 40GP container, reducing global logistics costs.
|
Basic Information
|
|
|
Model
|
R4T-KLED Mobile Lighting Tower
|
|
Product Type
|
Trailer-mounted Diesel LED Light Tower
|
|
Overall Dimension
|
2850 × 1590 × 2500 mm
|
|
Total Weight
|
1300 KG
|
|
Lighting System
|
|
|
LED Light Configuration
|
4 × 350W High-power LED Lamps
|
|
Total Luminous Flux
|
238,000 LM
|
|
Lighting Coverage Area
|
4009 ㎡ (5lux Illuminance)
|
|
Mast Height
|
9m, 9-section Hydraulic Lifting Mast
|
|
Mast Adjustment
|
355° Electric Rotation + 90° Electric Tilt
|
|
Power System
|
|
|
Power Output
|
4KW Stable Power Output
|
|
Engine Model
|
Original Kubota Diesel Engine
|
|
Fuel Consumption
|
0.65 L/h, Low Fuel Consumption
|
|
Fuel Tank Capacity
|
210 L Large Capacity Fuel Tank
|
|
Control Mode
|
Manual Control / Timer Automatic Control
|
|
Chassis & Mobility
|
|
|
Mobility Design
|
Road Towable Trailer with 50mm Ball Hitch
|
|
Stabilization System
|
4 Hydraulic Outriggers for Fast Leveling & Stabilizing
|
|
Loading Method
|
Reserved Forklift Holes for Convenient Handling
|
|
Container Loading Capacity
|
3 Units / 20GP Container; 7 Units / 40GP Container
|
