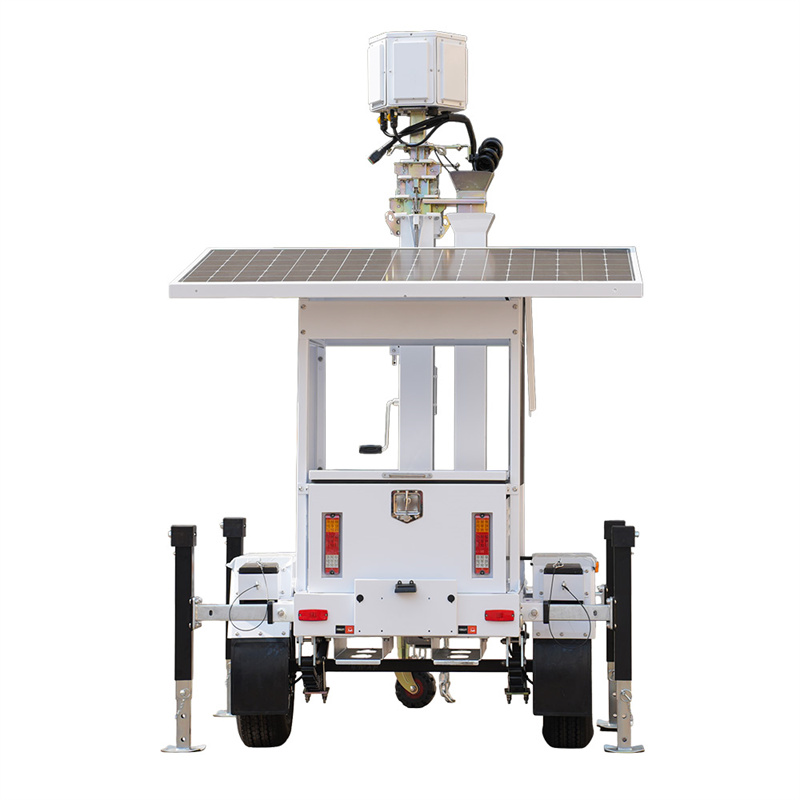

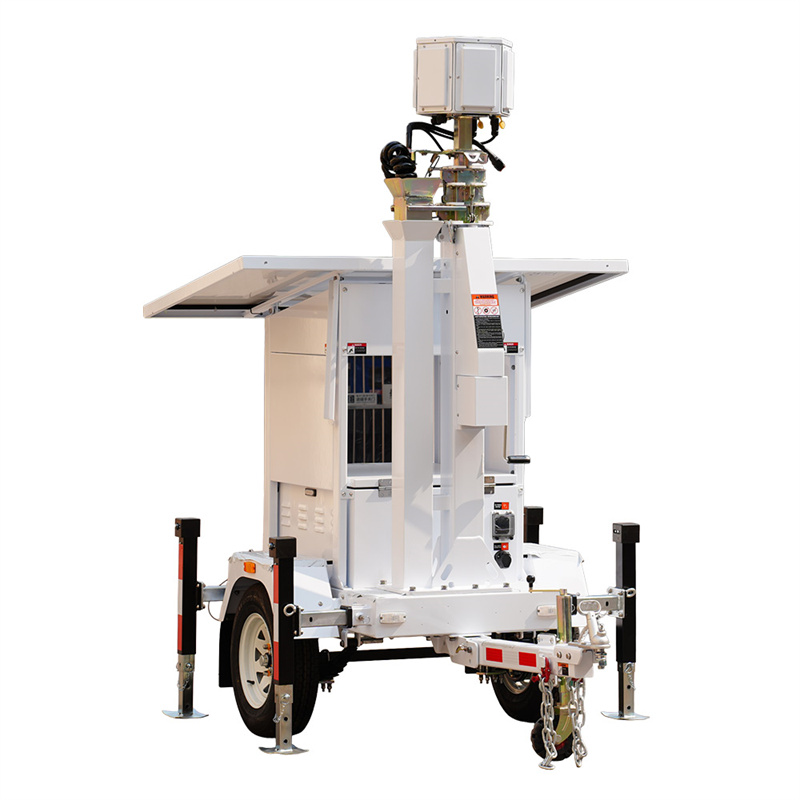

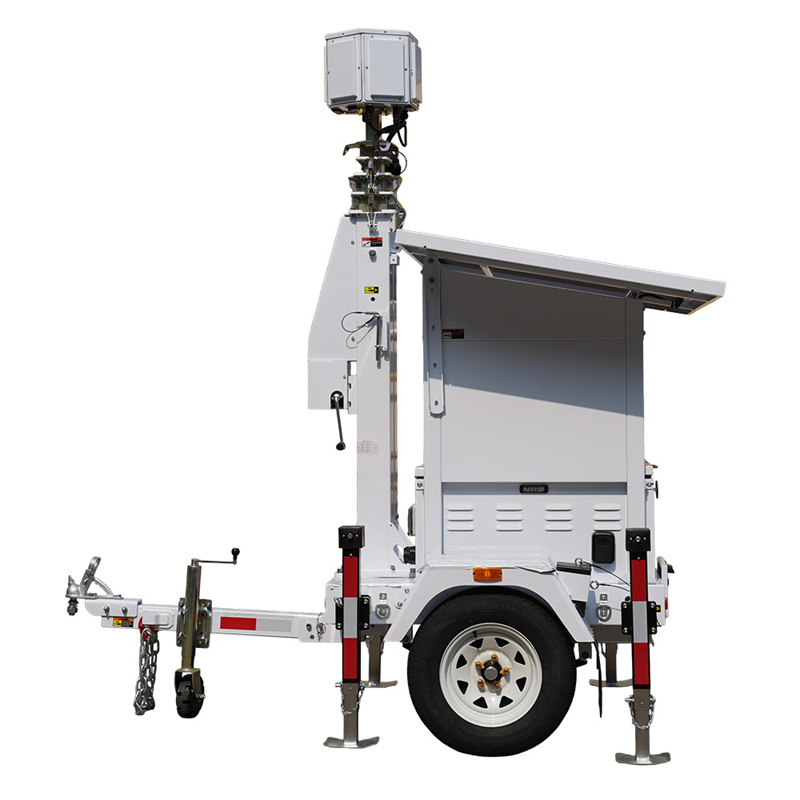

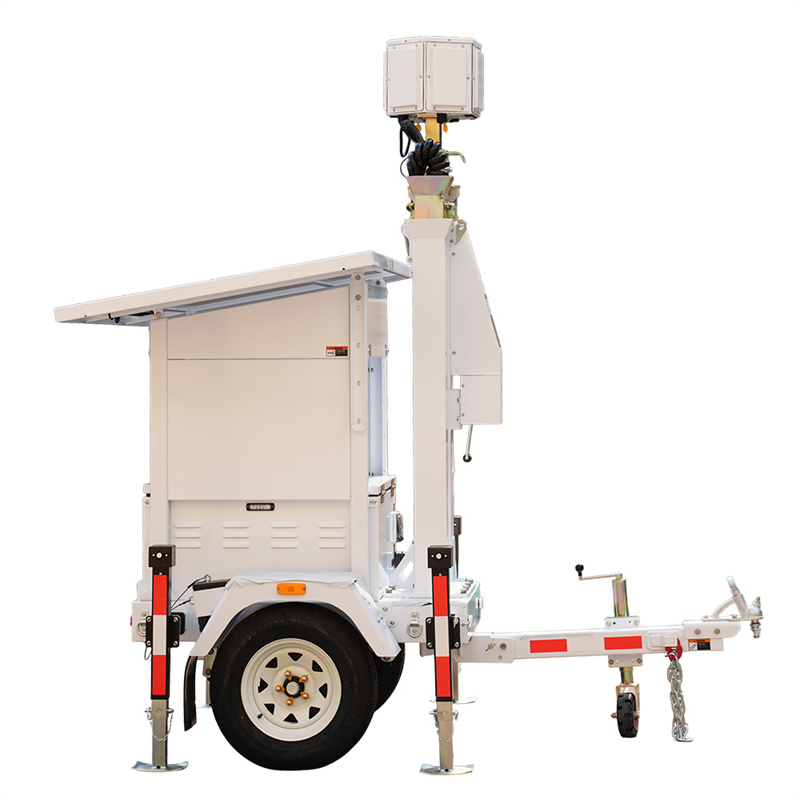

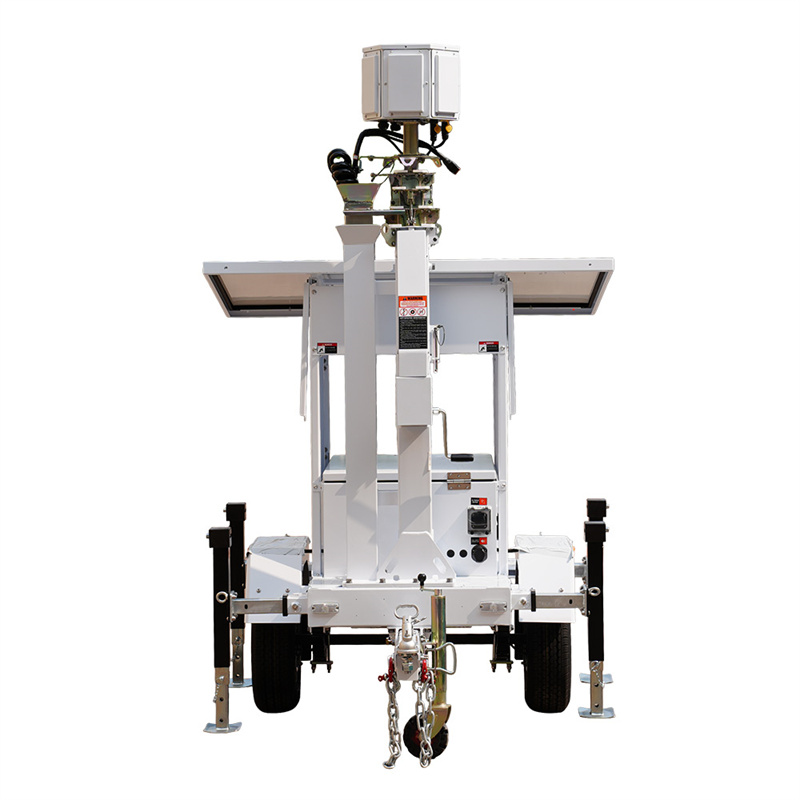

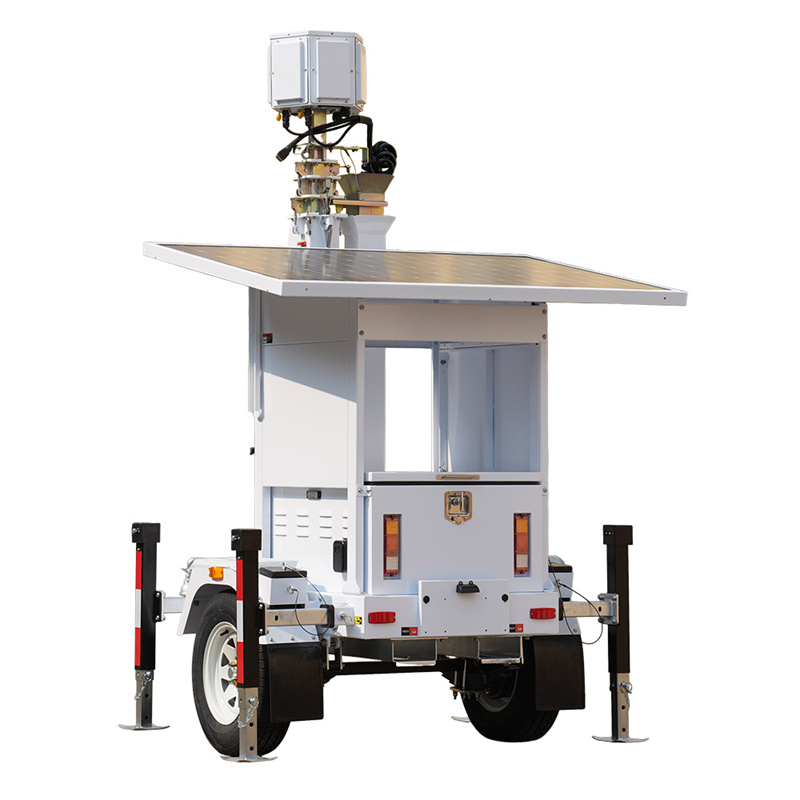

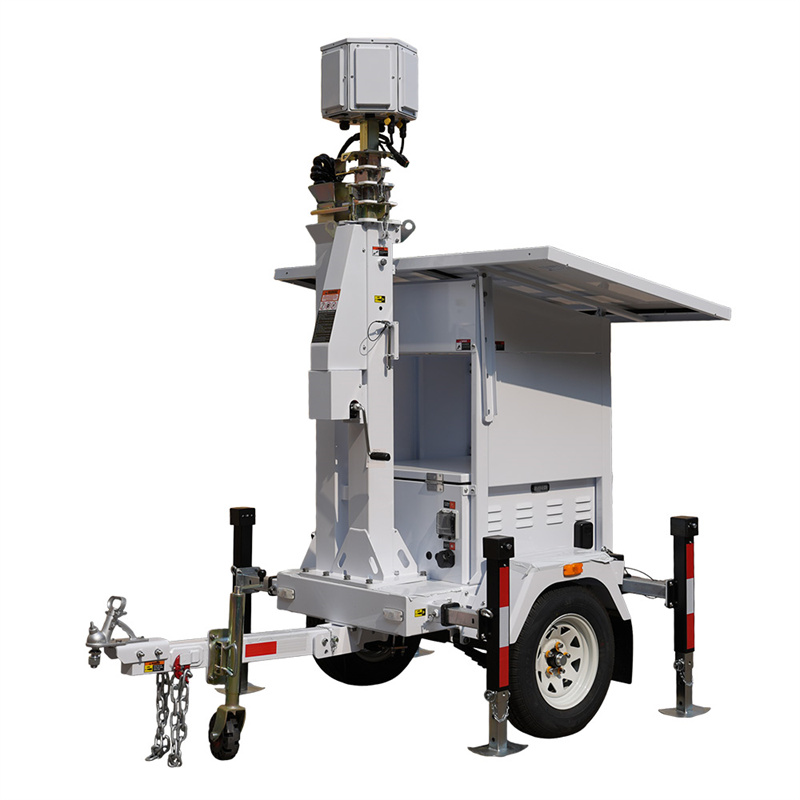

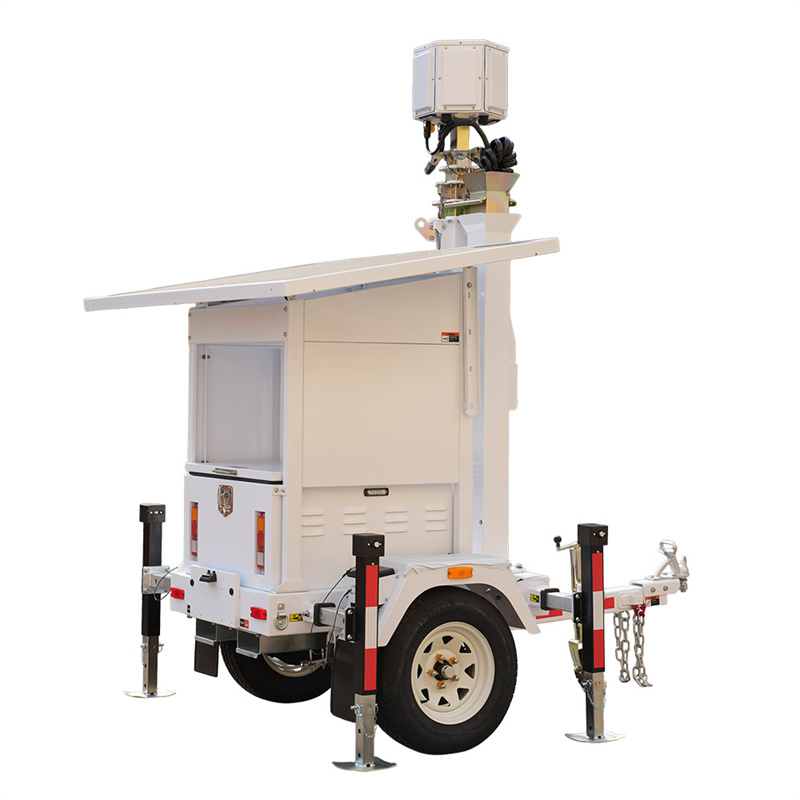

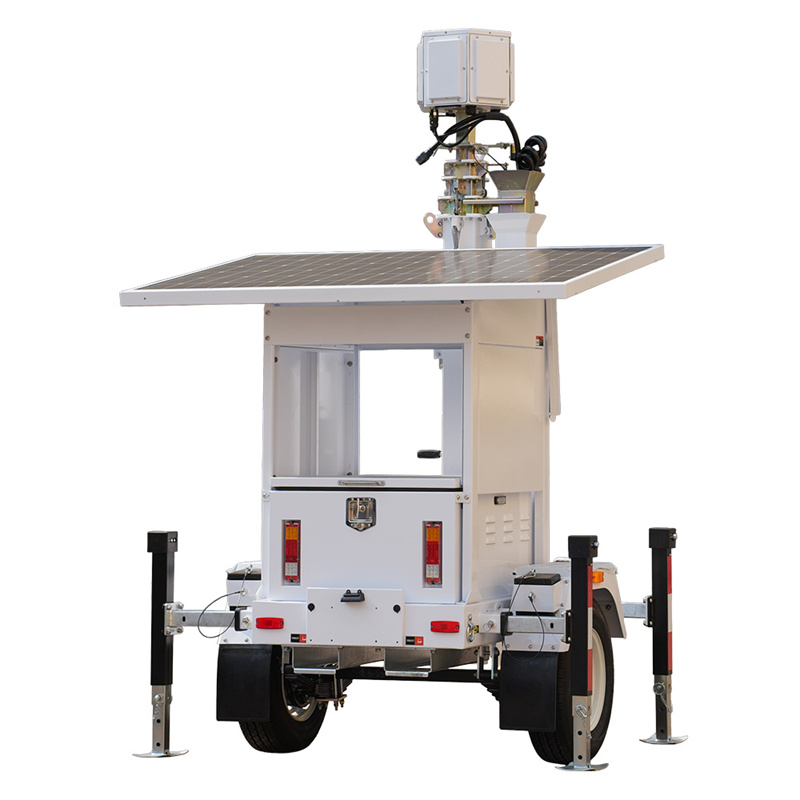

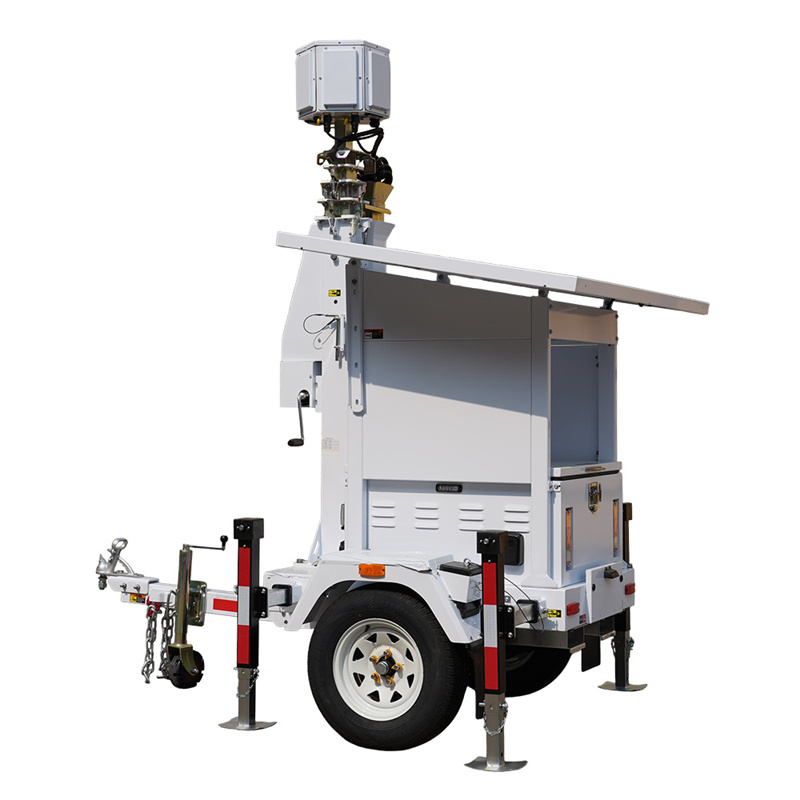

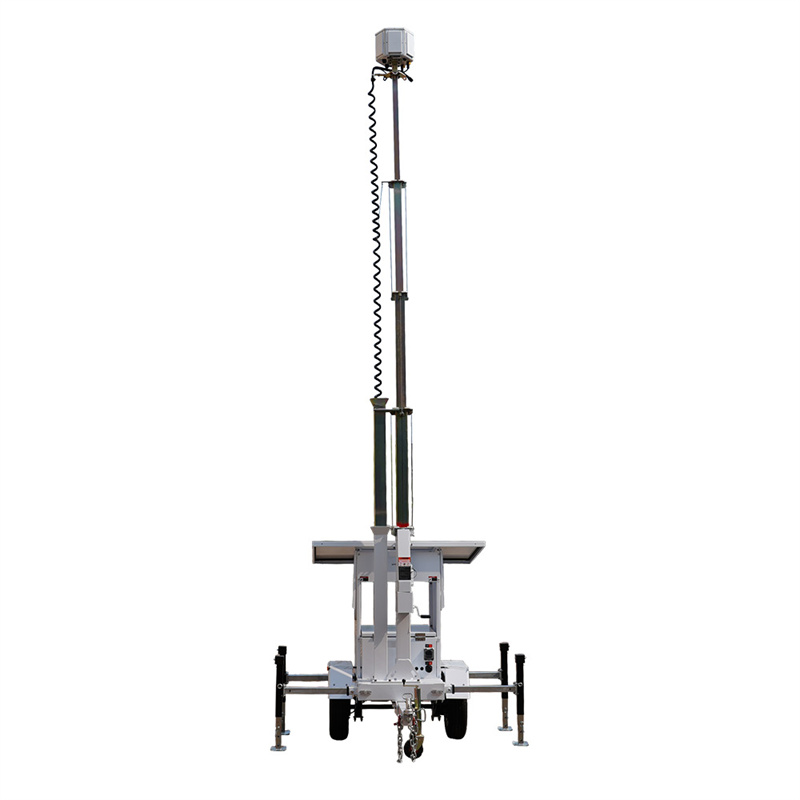

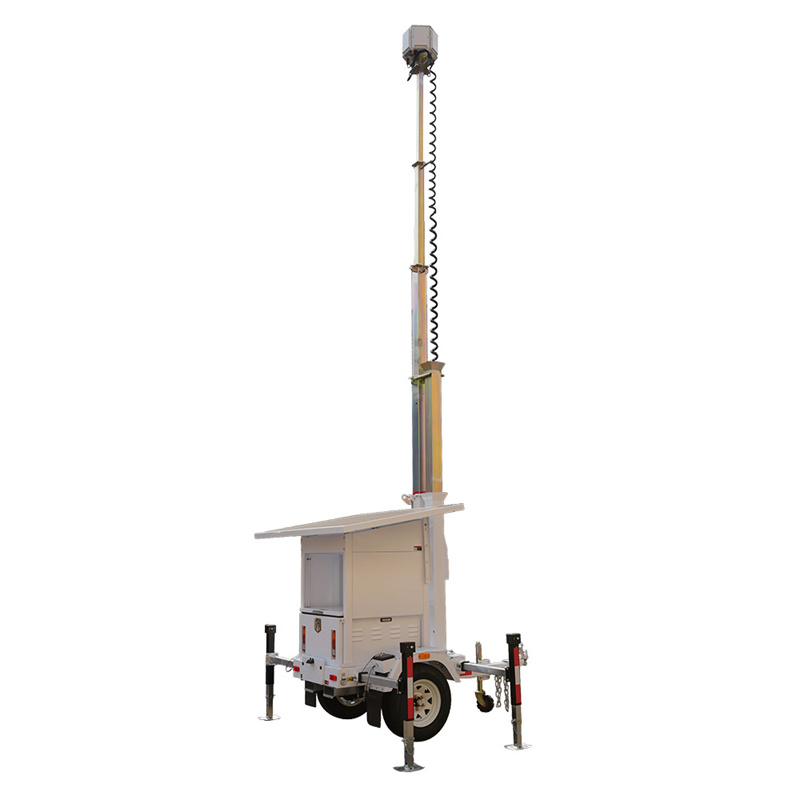

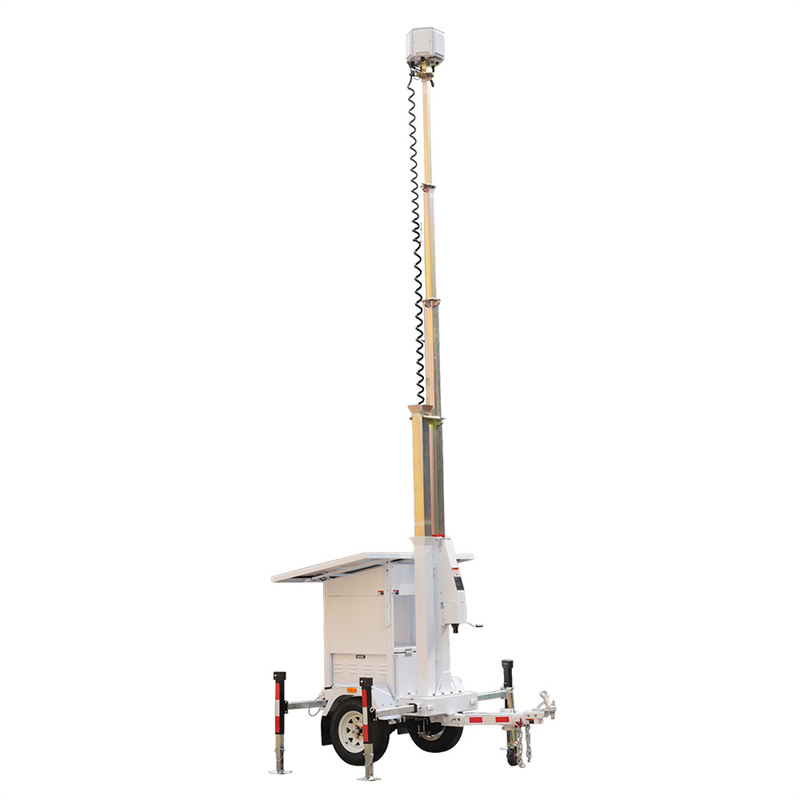

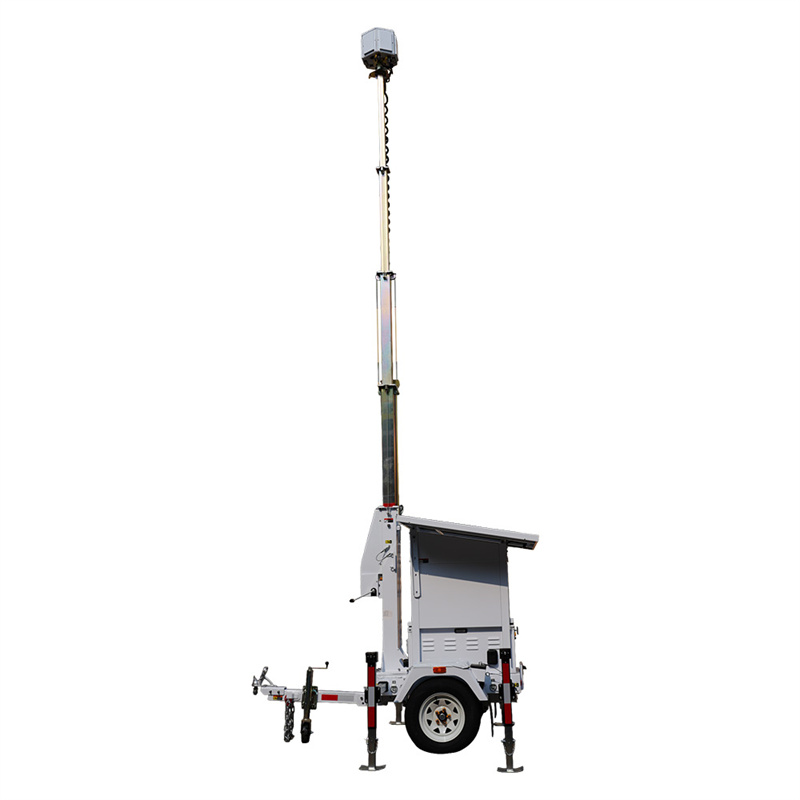

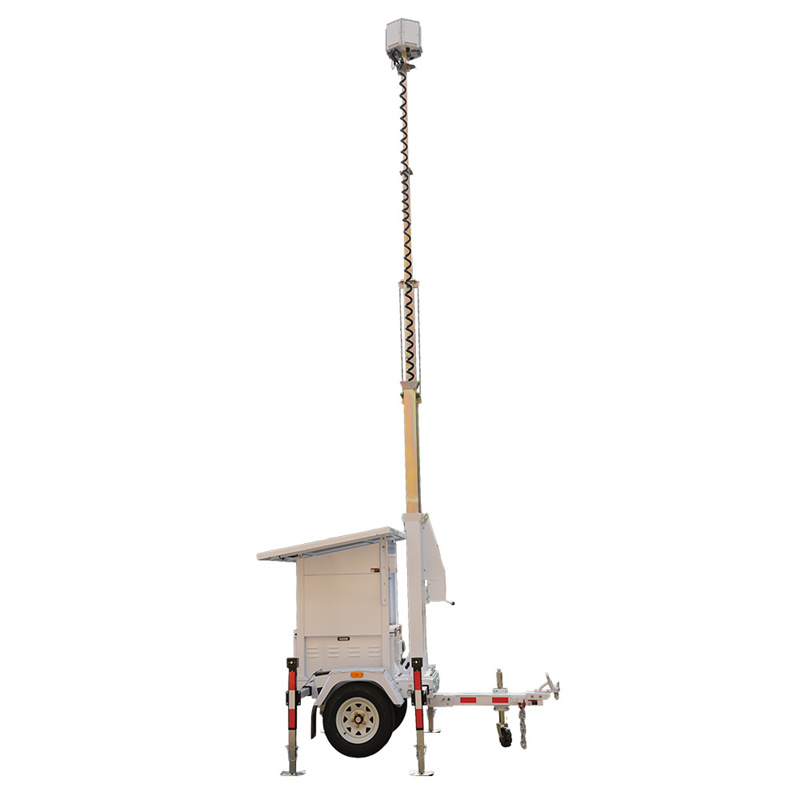

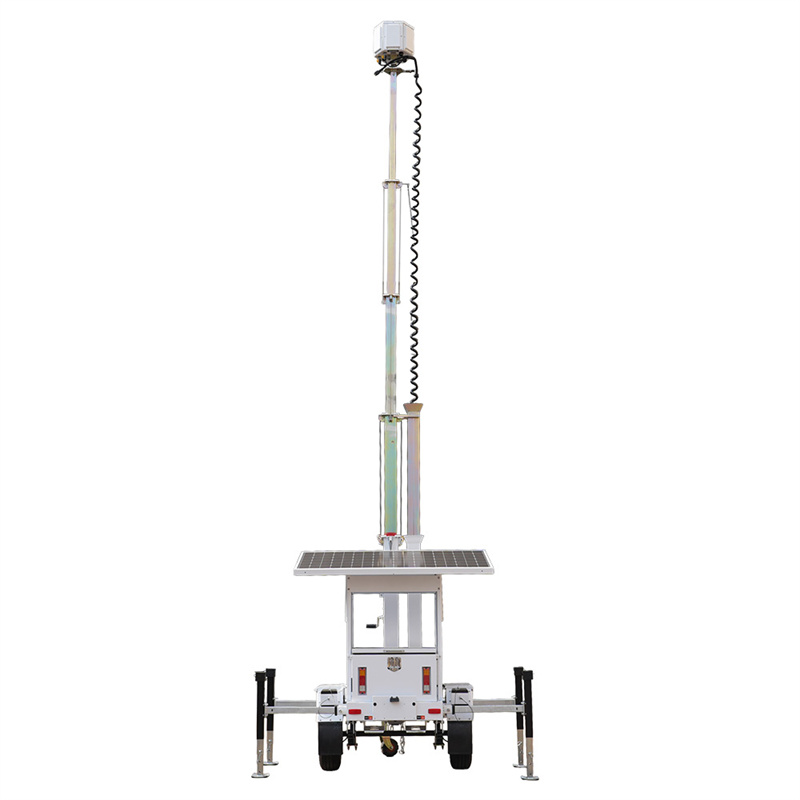

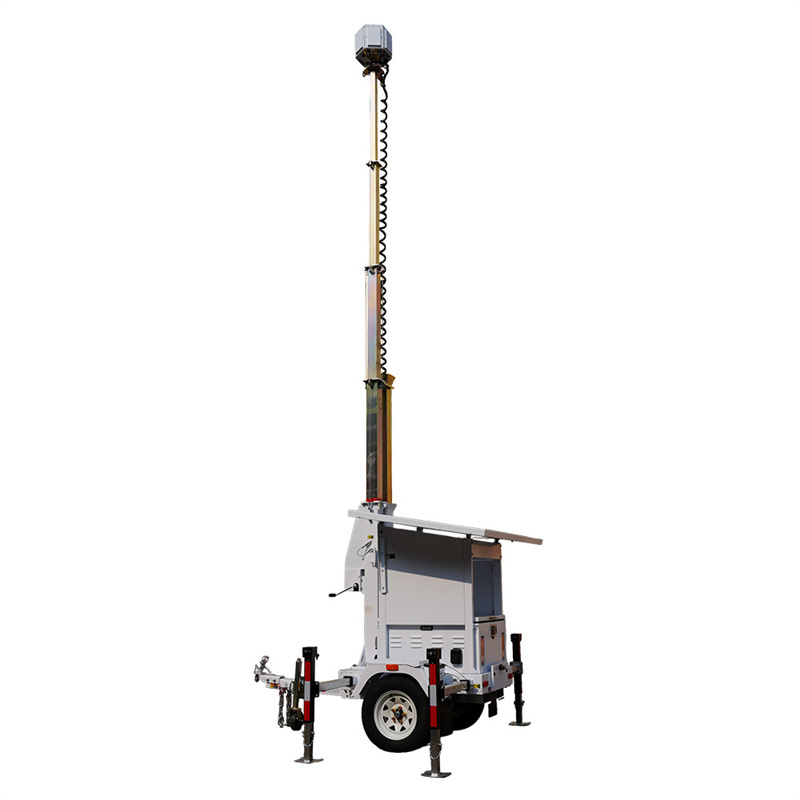

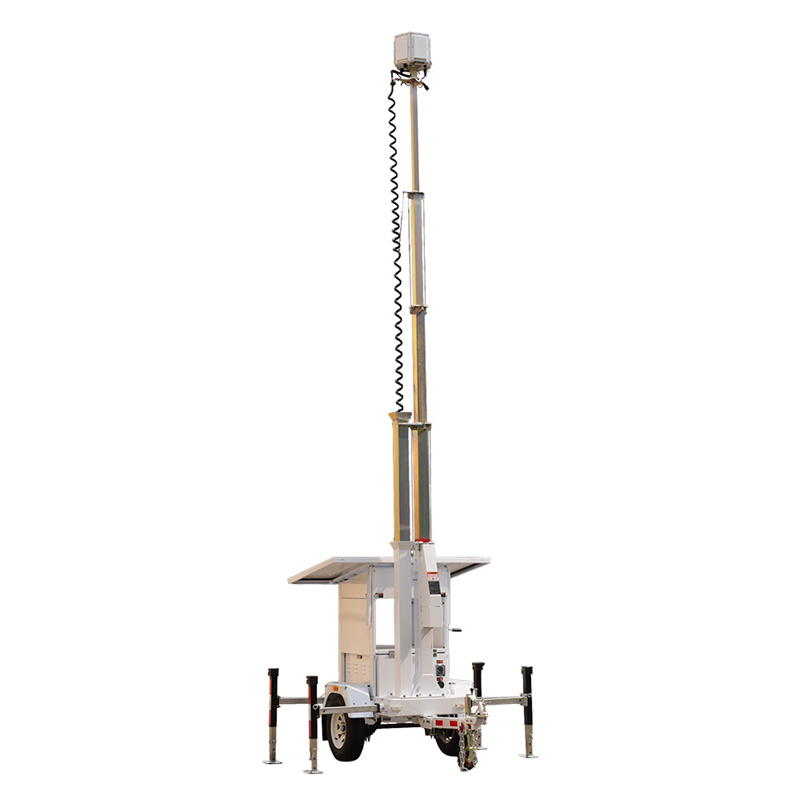

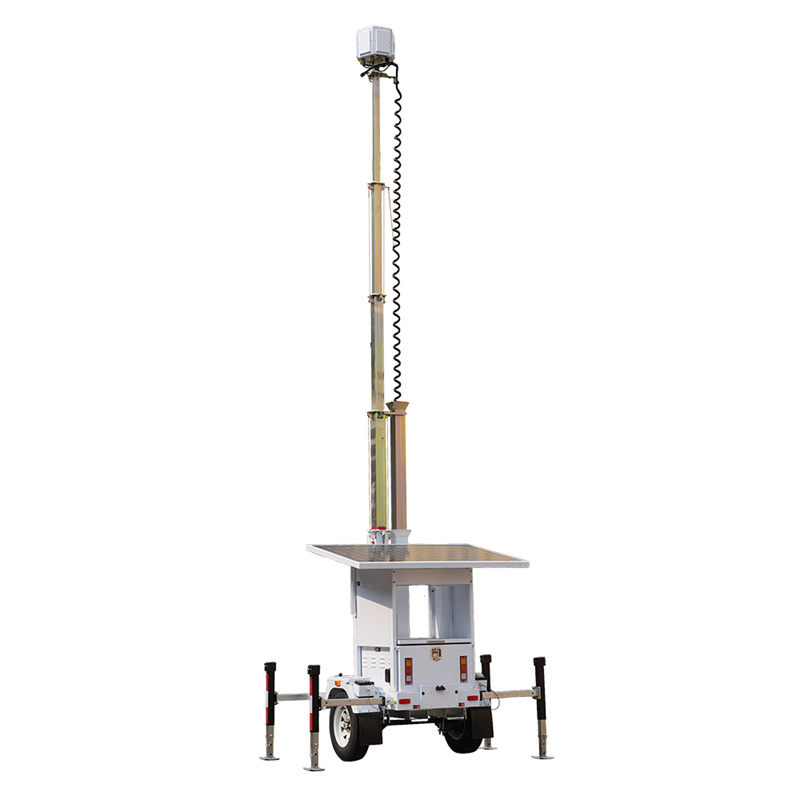

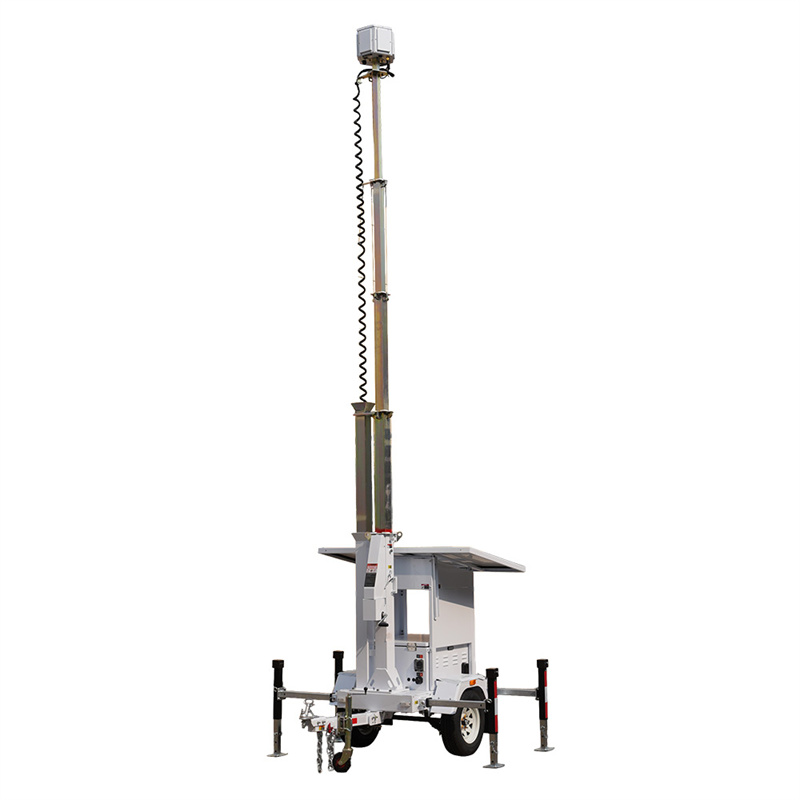

Solar CCTV Tower UNI-T1

Core CCTV Functions & Configuration

Supported Brands Hikvision and other mainstream brands

Recommended Model Hikvision DS-2SE4C425MWG-E/26(F0) 4MP 25× IR PTZ Camera

View 360° panoramic coverage, 25× optical zoom + 16× digital zoom

Low-light Technology DarkFighter & ColorVu, IR distance up to 100m, white light 30m

Intelligence Human & vehicle classification, deep learning algorithm

Video Recorder Hikvision NVR DS-7608NXI-K1 (optional)

Network 4G Router USR-G806s-G (optional)

Speaker T-720AP 30W IP55 (optional)

Display G0816 (optional)

Inquiry Contact Us

Is there a problem?
Please contact us to serve you!

+86-15257010008

[email protected]

Inquiry

Description

Solar Panel:	1 × 490W, Bifacial & BC
LFP Battery:	230Ah 12.8VDC, 2.9kW`h,with Heater,10+ years Life
Battery Charger:	600W, Shore Power & Generator Compatible
CCTV Pre-Wiring:	Supply 12VDC, 24VDC, 48VDC & PoE Switch
Controller:	40A MPPT with Remote Monitoring
Mast:	High-Tensile Steel, Hot Dip Galvanized, Square type,5 Sec 6.3 m, Manual Winch Lifting, 117km/h Wind Rating
Trailer:	US DOT, 2'' Ball Hitch, Single Axle, 4× Outrigger, Fork Pockets
Internal & External Anti-Corrosion Powder Coating
Solar Recharge Time:	5.5 hrs by Peak Solar
Operating Time:	48 hrs @ 50W Continuous Load
SKD 7 units in 20ft,SKD 16 units in 40ft,CKD 21 units in 40ft
