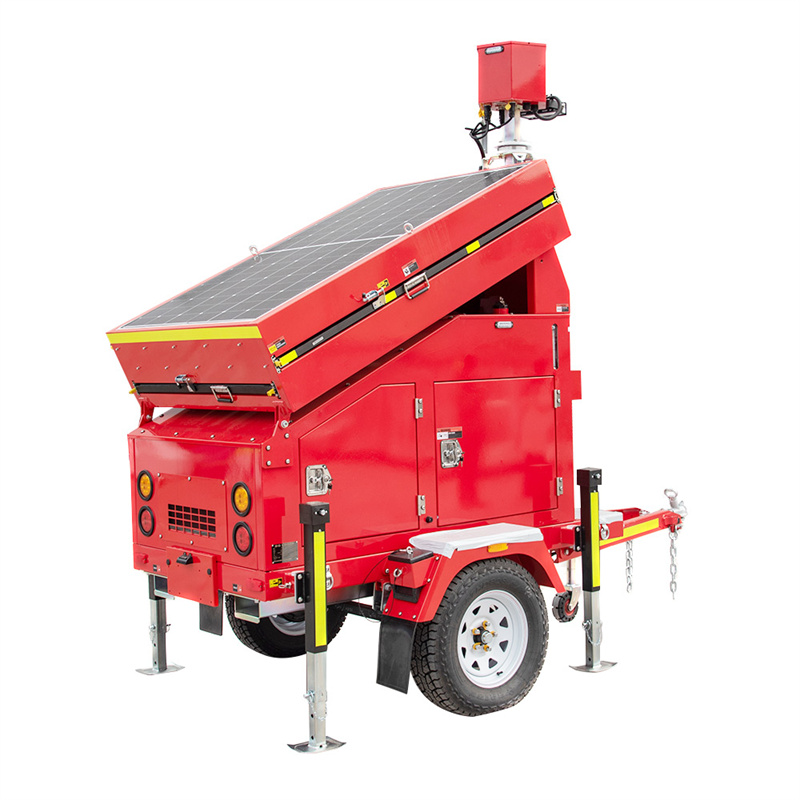

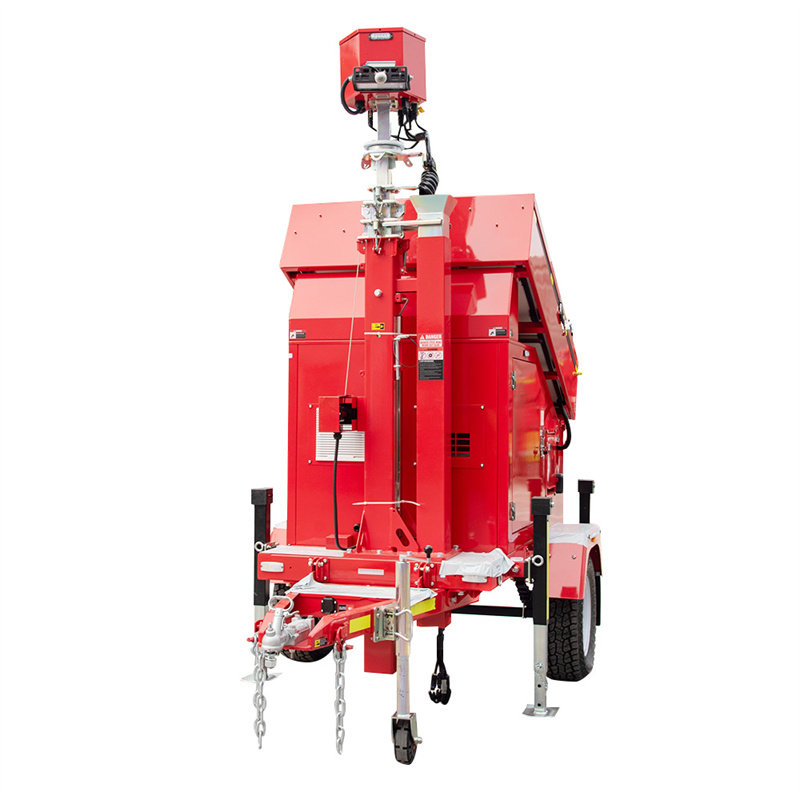

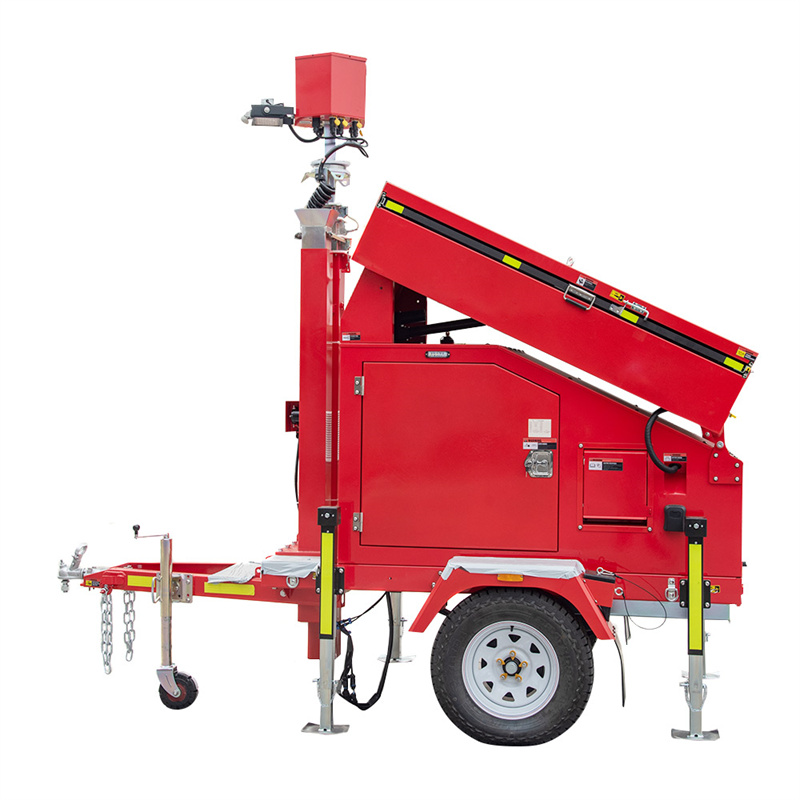

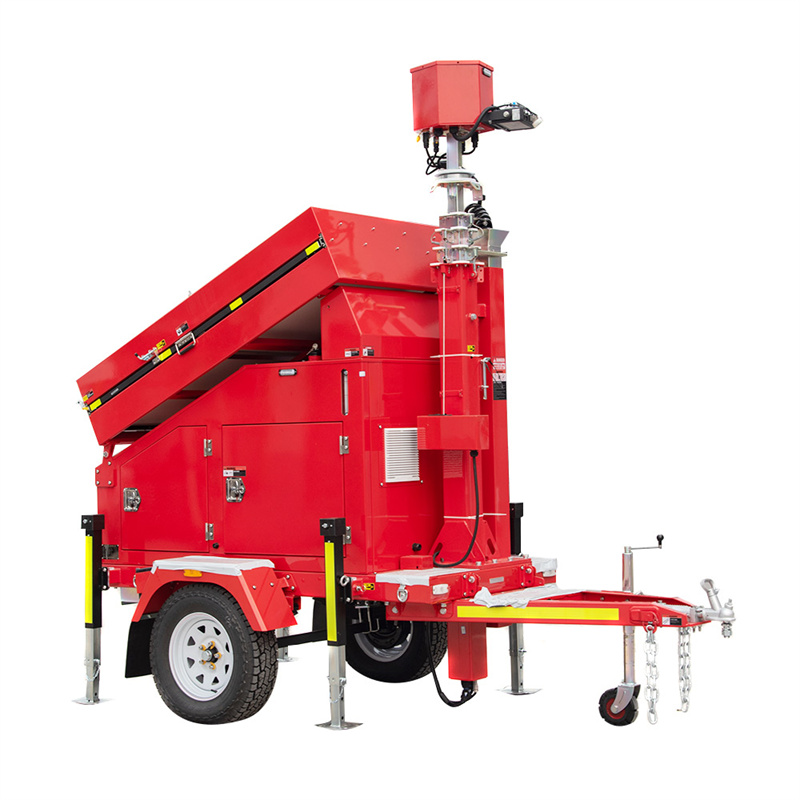

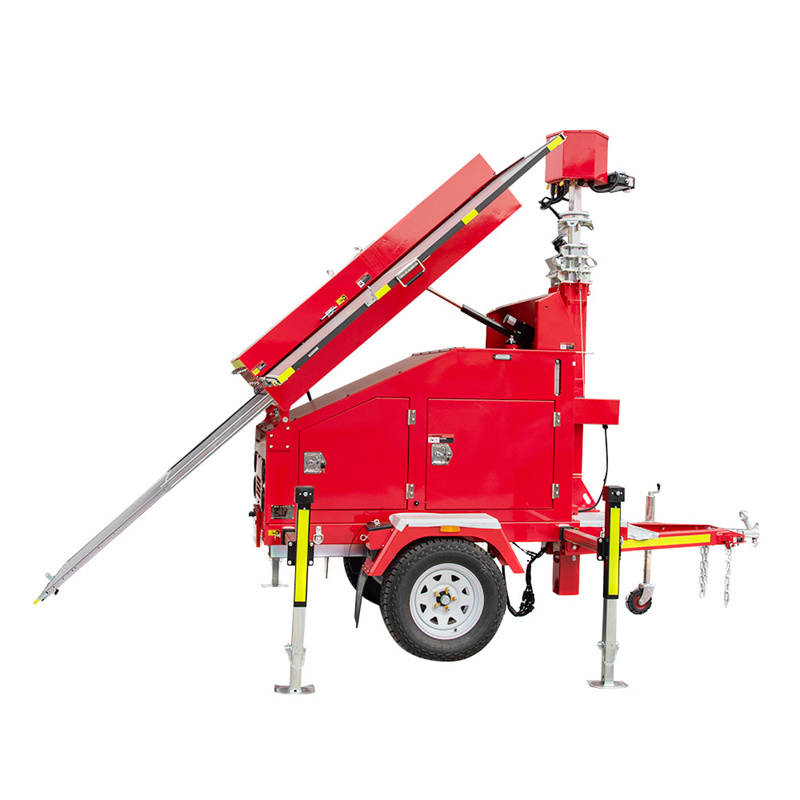

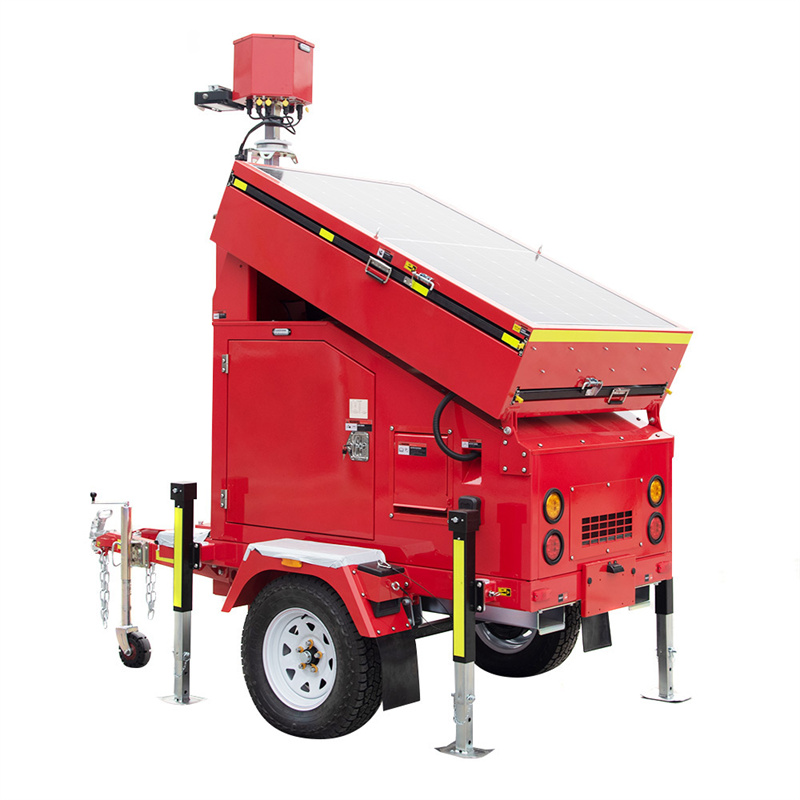

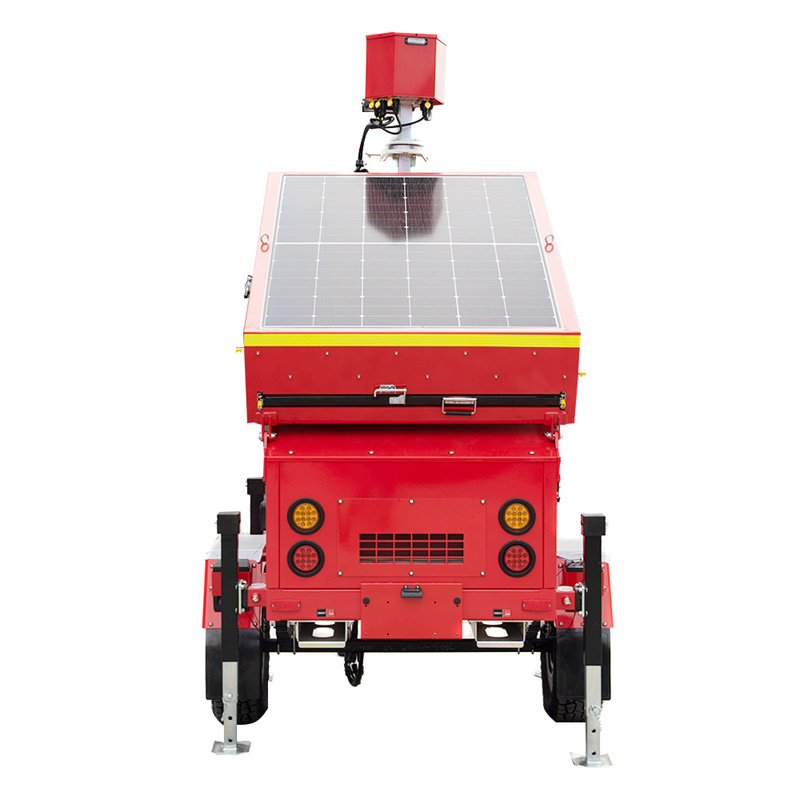

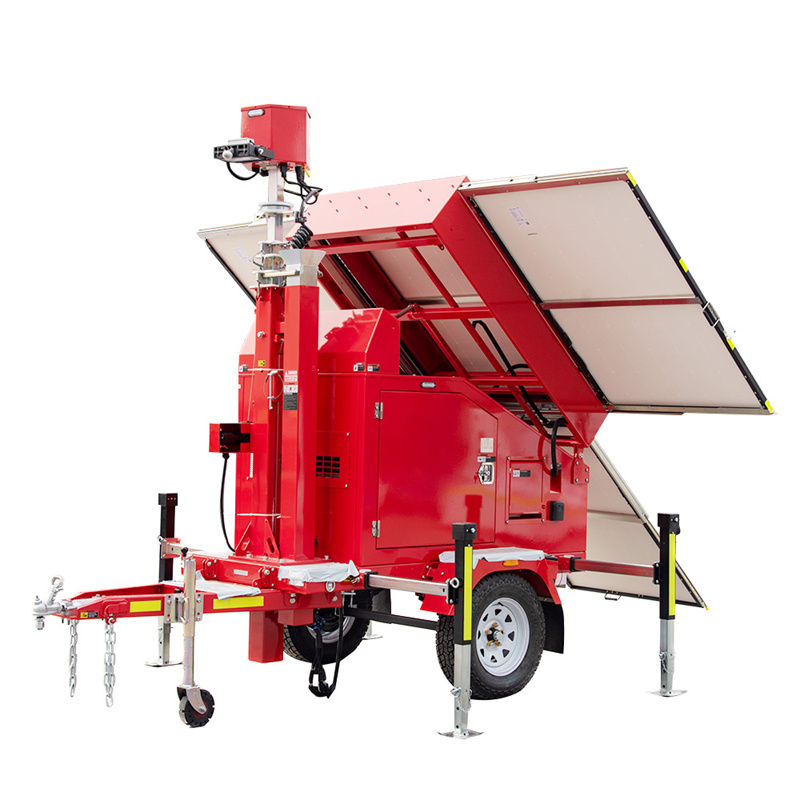

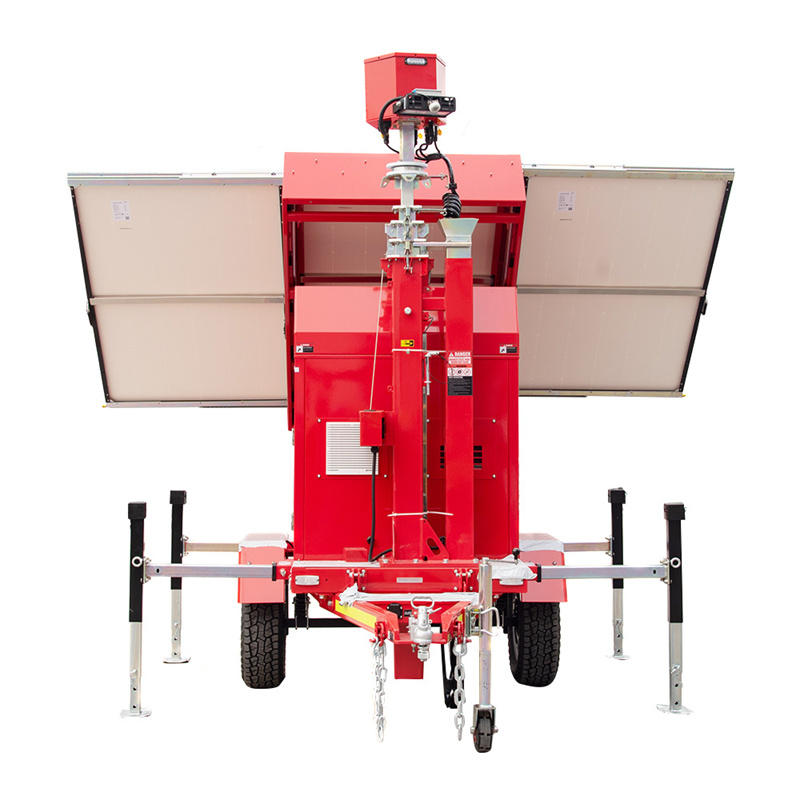

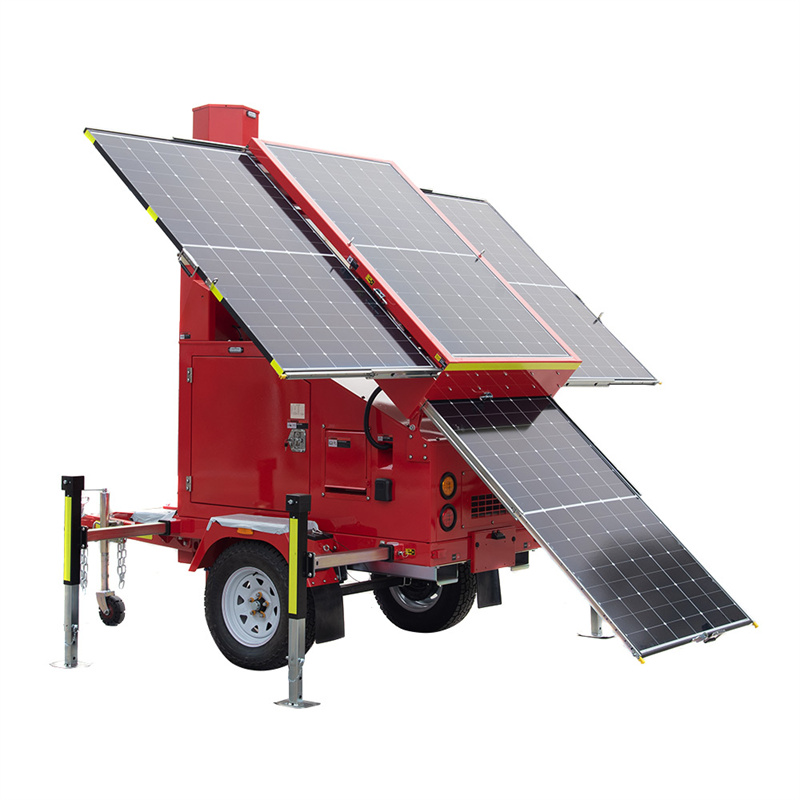

Solar CCTV Tower UST-1200S

Camera

Hikvision DS-2SE4C425MWG-E/26(F0) 4 MP 25 × IR Network Speed Dome adopts 1/2.8" progressive scan CMOS chip. With the 25 × optical zoom lens, the camera offers more details over expansive areas. This series of cameras can be widely used for wide ranges of high-definition, such as rivers, roads, railways, airports, squares, parks, scenic spots, and venues, etc.

• Captures a large area and great details at the same time

• High quality panoramic imaging with 6 MP resolution and details imaging with 4 MP

• Excellent low-light performance with powered-by-DarkFighter technology and ColorVu technology

• Secures an expansive area with 25× optical zoom and 16×digital zoom

• Expansive night view with up to 100 m IR distance & 30 m white light

• Supports 12V DC & PoE+Focuses on human and vehicle targets classification based on deep learning

Inquiry Contact Us

Description
Applications
Competitive Advantage

Is there a problem?
Please contact us to serve you!

+86-15257010008

[email protected]

Inquiry

Description

Spearker(T-720AP)

Model	T-720AP
Rated Power	30W
Power Input	DC 12V
IP Rate	IP55
Dimensions	282 x 210 x 290mm
Weight	2.1Kg

Applications

Competitive Advantage

NVR (DS-7604NXI-K1)

• Up to 4-ch IP camera inputs

• H.265+/H.265/H.264+/H.264 video formats

• Up to 1-ch@12 MP or 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity

• Up to 40 Mbps incoming bandwidth

• Adopt Hikvision Acusense technology to minimize manual effort and security costs

Specifications

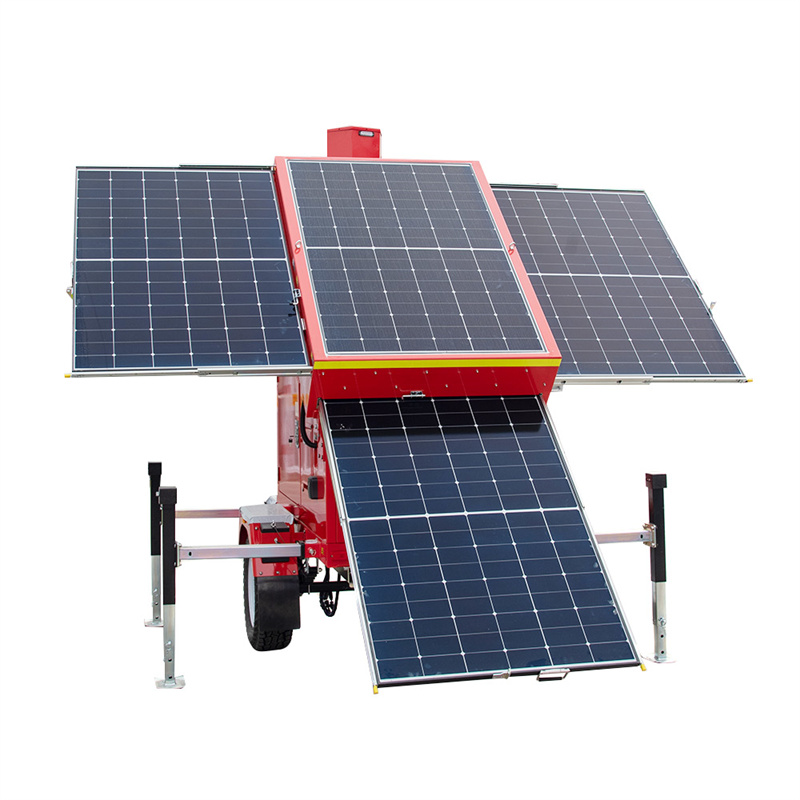

Solar Panel:	4 × 490W, Bifacial & BC
LFP Battery:	314Ah 51.2VDC, 16kW`h, with Heater, 10+ years Life
Battery Charger:	1.5kW, Shore Power & Generator Compatible
CCTV Pre-Wiring:	Supply 12VDC, 24VDC, 48VDC & PoE Switch
Controller:	40A MPPT with Remote Monitoring
Mast:	High-Tensile Steel, Hot Dip Galvanized, Square type,5 Sec 6.3 m, Manual Winch Lifting, 117km/h Wind Rating
Trailer:	US DOT, 2'' Ball Hitch, Single Axle, 4× Outrigger, Fork Pockets
Internal & External Anti-Corrosion Powder Coating
Solar Recharge Time:	7.5 hrs by Peak Solar
Operating Time:	72 hrs @ 200W Continuous Load
CBU 3 units in 20ft, 7 units in 40ft
