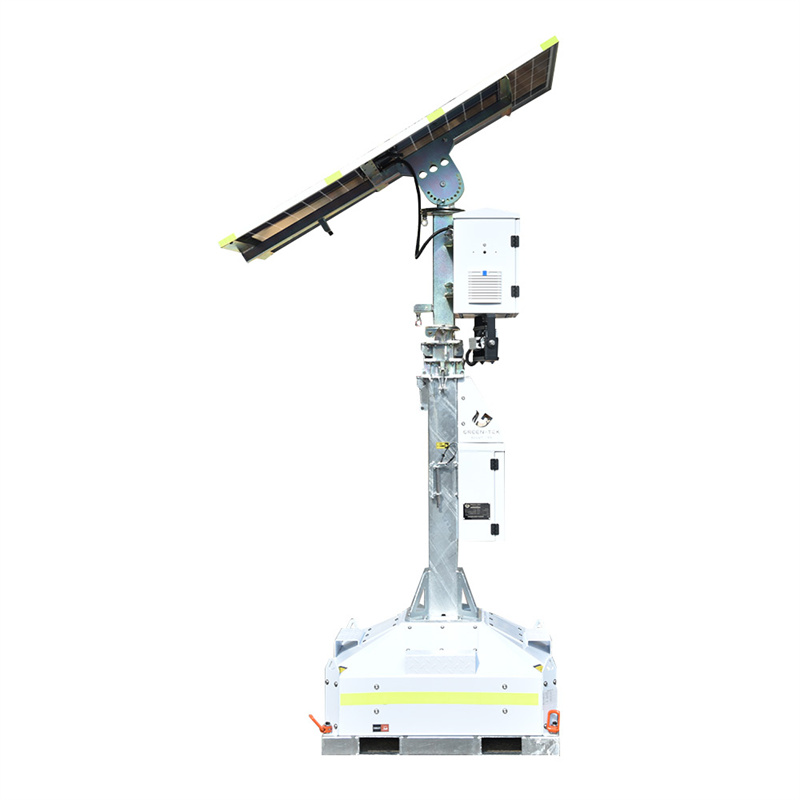

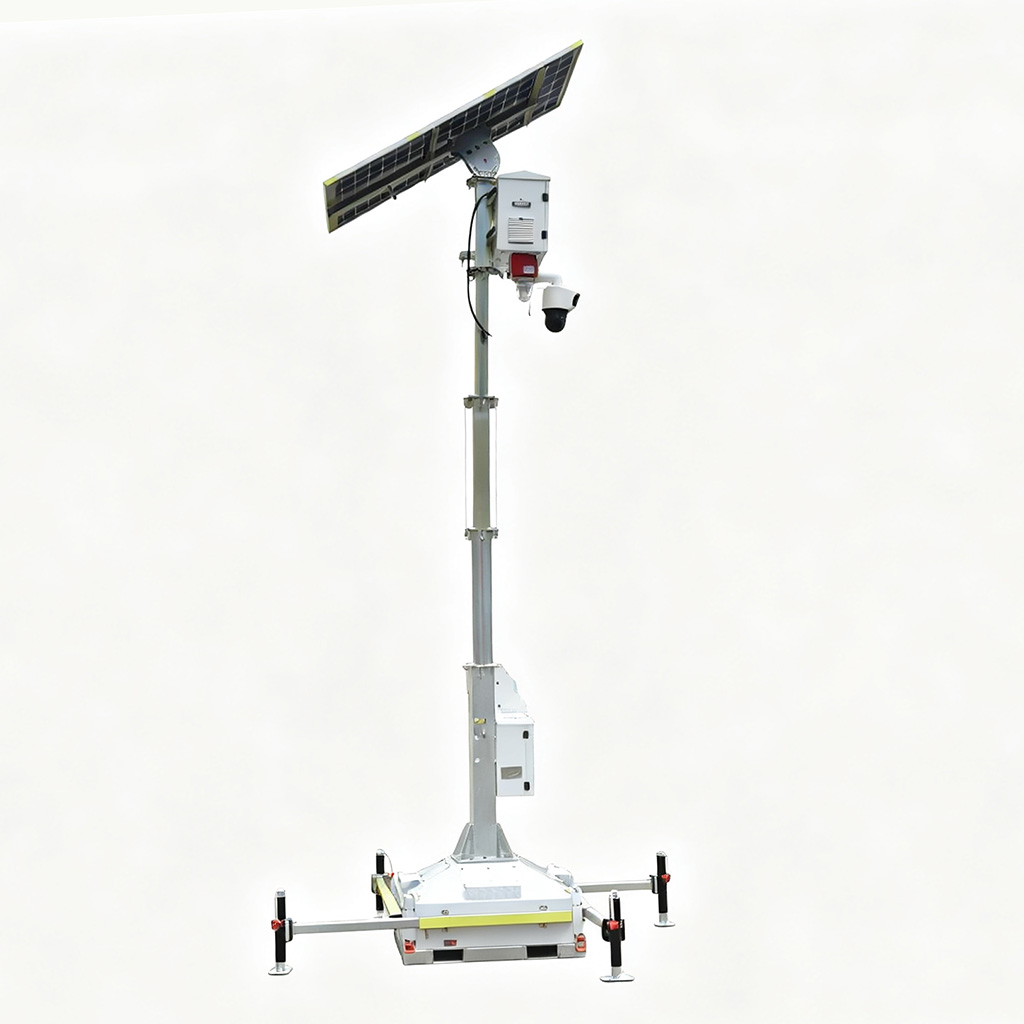

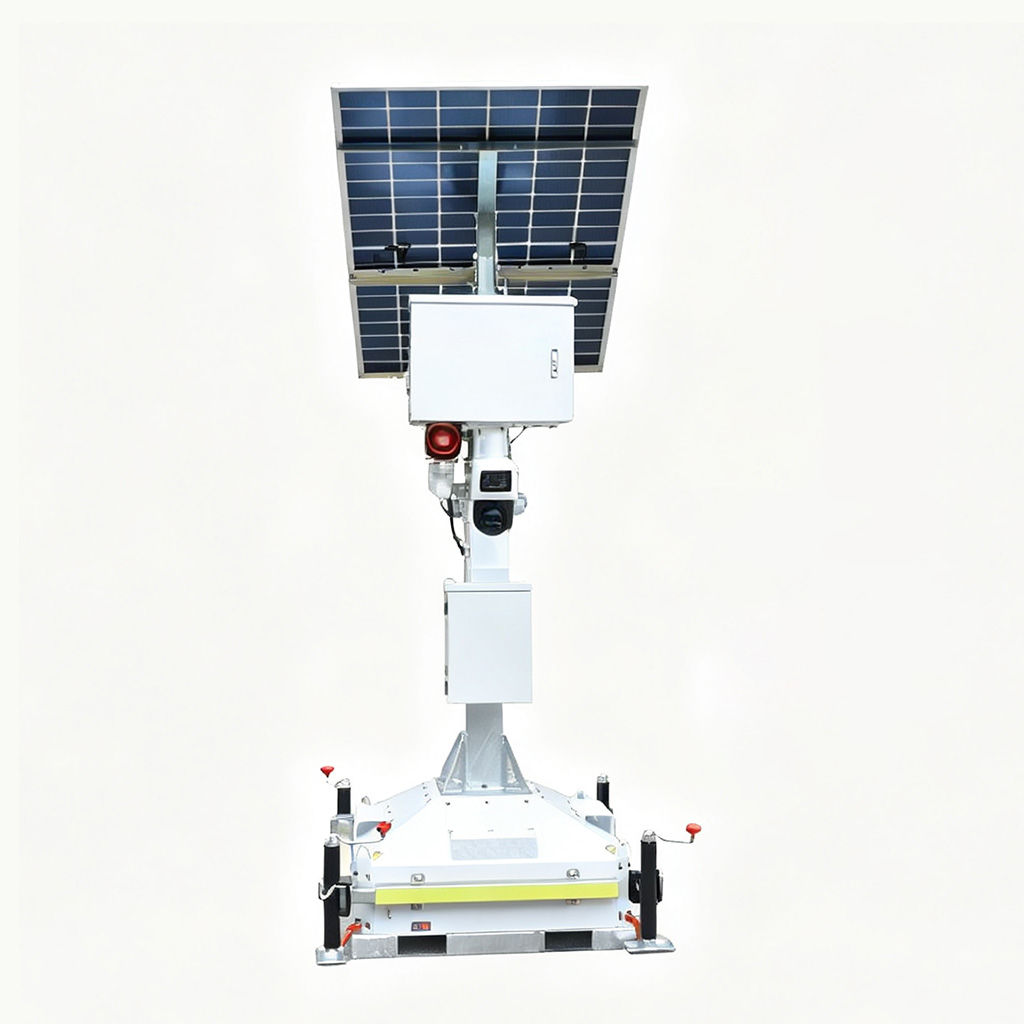

Solar CCTV Tower UST-300S

Camera

Hikvision DS-2SE4C425MWG-E/26(F0) 4 MP 25 × IR Network Speed Dome adopts 1/2.8" progressive scan CMOS chip. With the 25 × optical zoom lens, the camera offers more details over expansive areas. This series of cameras can be widely used for wide ranges of high-definition, such as rivers, roads, railways, airports, squares, parks, scenic spots, and venues, etc.

• Captures a large area and great details at the same time

• High quality panoramic imaging with 6 MP resolution and details imaging with 4 MP

• Excellent low-light performance with powered-by-DarkFighter technology and ColorVu technology

• Secures an expansive area with 25× optical zoom and 16×digital zoom

• Expansive night view with up to 100 m IR distance & 30 m white light

• Supports 12V DC & PoE+Focuses on human and vehicle targets classification based on deep learning

  • Description
  • Applications
  • Competitive Advantage
Inquiry

Is there a problem?
Please contact us to serve you!

Inquiry
Model TGSG-03K-A
Maximum Power 25W
Power Input DC 24V
IP Rate IP55
Dimensions 180 x 182 x 280.7mm

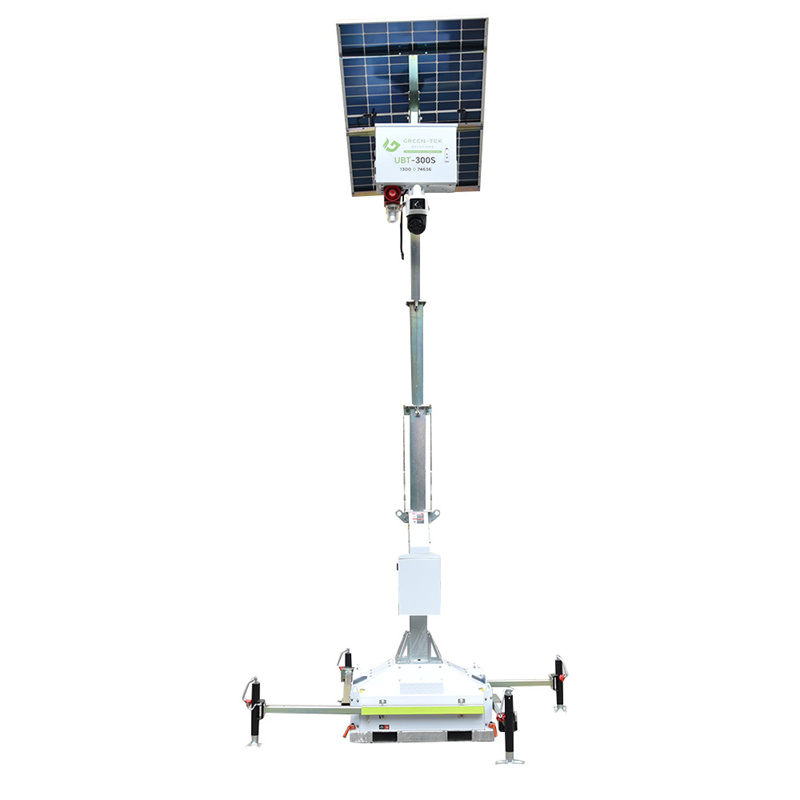

  • DSC_8505.jpg

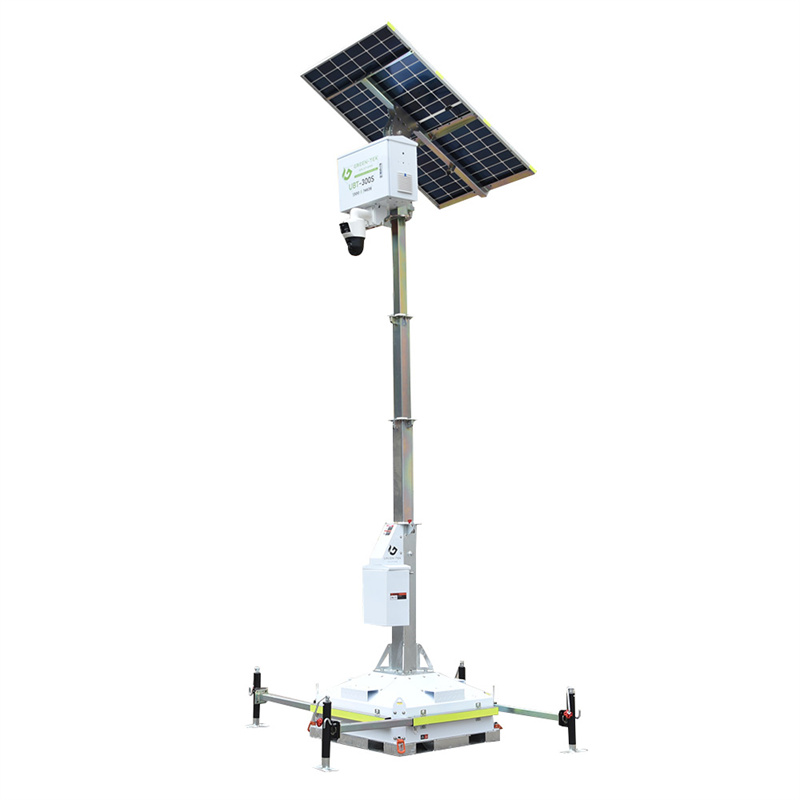

  • DSC_8506.jpg

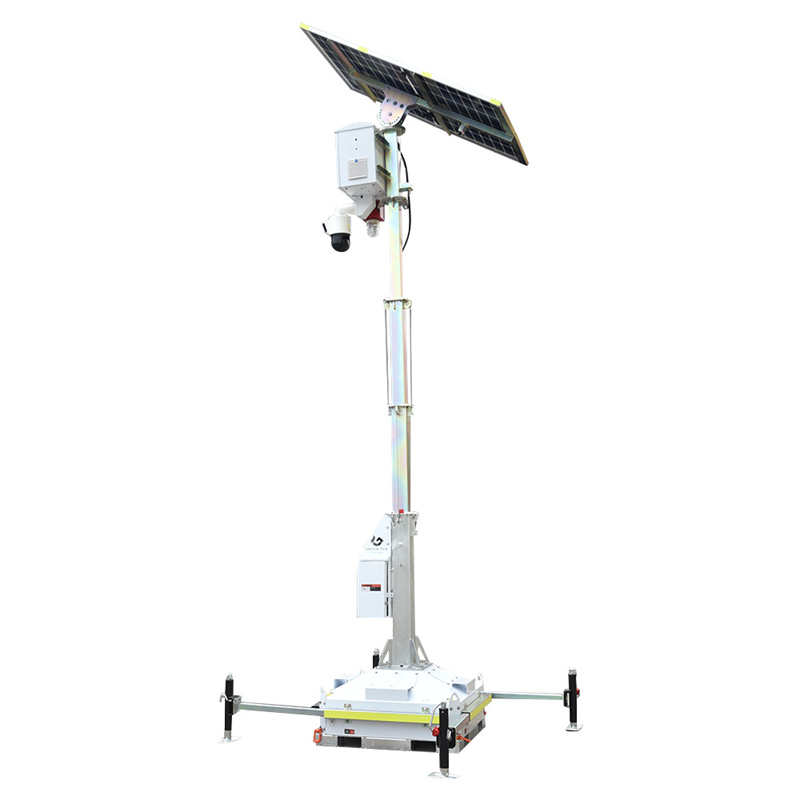

  • DSC_8507.jpg

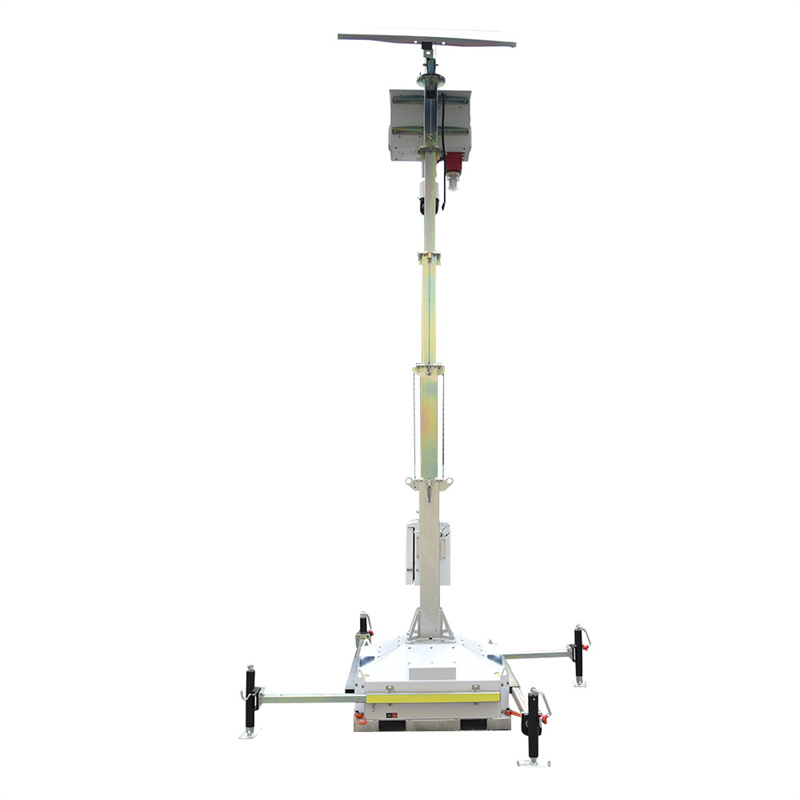

  • DSC_8508.jpg

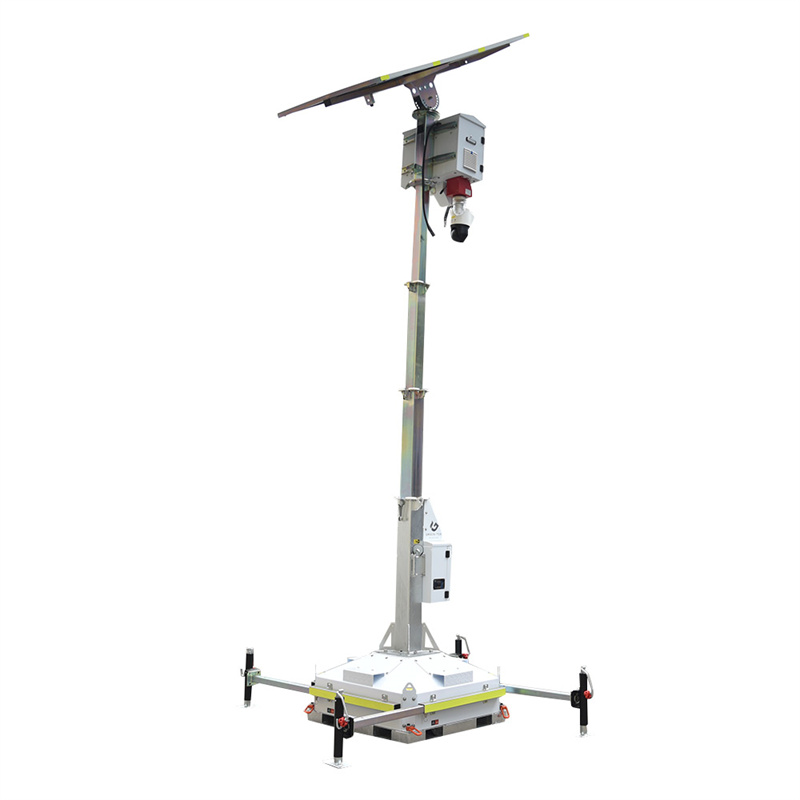

  • DSC_8509.jpg

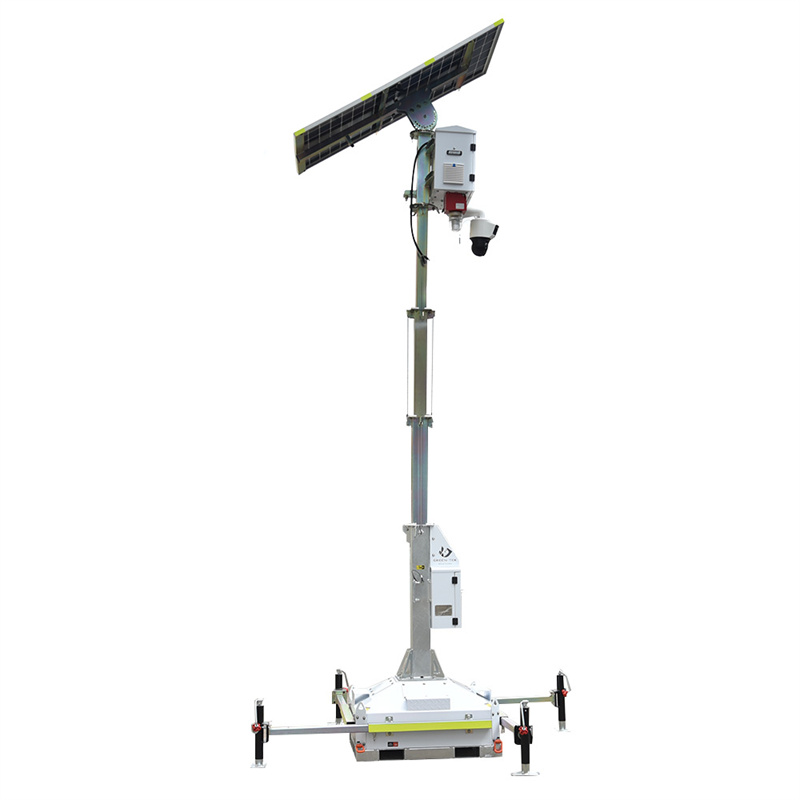

  • DSC_8510.jpg

4G Router (USR-G806s-G)

• Dimension: 90*84*25mm

• Ethernet Ports: 1*WAN/LAN(Configurable)+1*LAN

• WiFi: IEEE 802.11 b/g/n, 1*RP-SMA-K antenna connector

• Power Supply: 2-pin terminal block & DC socket redundancy

• SIM Card: Mini SIM(2FF)

Installation: Wall Mounting & DIN Rail Mounting Available

Solar Panel: 1 × 490W, Bifacial & BC
LFP Battery: 230Ah 12.8VDC, 2.9kW`h,with Heater,10+ years Life
Battery Charger: 600W, Shore Power & Generator Compatible
CCTV Pre-Wiring: Supply 12VDC, 24VDC, 48VDC & PoE Switch
Controller: 40A MPPT with Remote Monitoring
Mast: High-Tensile Steel, Hot Dip Galvanized, Square type, 5 Sec 6.3 m, Manual Winch Lifting, 117km/h Wind Rating
Trailer: US DOT, 2'' Ball Hitch, Single Axle, 4× Outrigger, Fork Pockets,nternal & External Anti-Corrosion Powder Coating
Solar Recharge Time: 5.5 hrs by Peak Solar
Operating Time: 48 hrs @ 50W Continuous Load,SKD 7 units in 20ft,SKD 16 units in 40ft,CKD 21 units in 40ft
