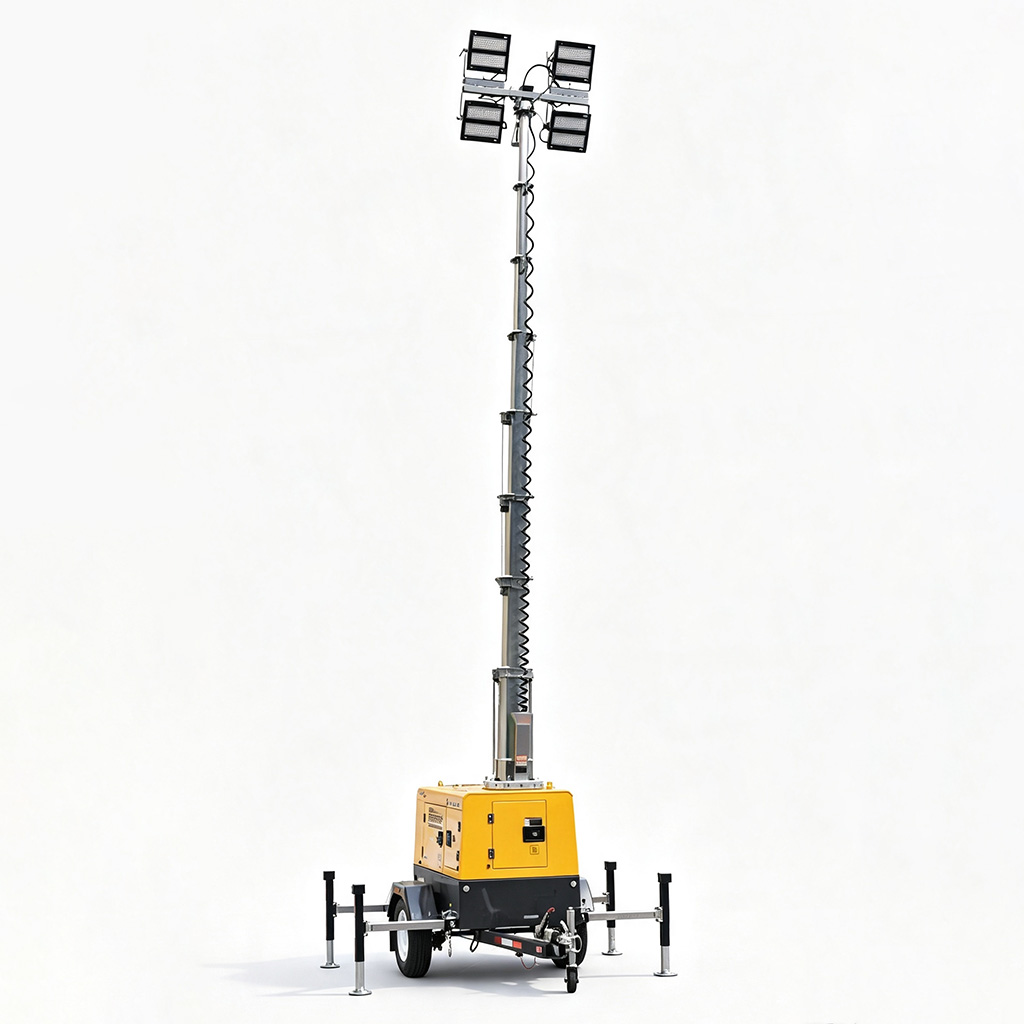

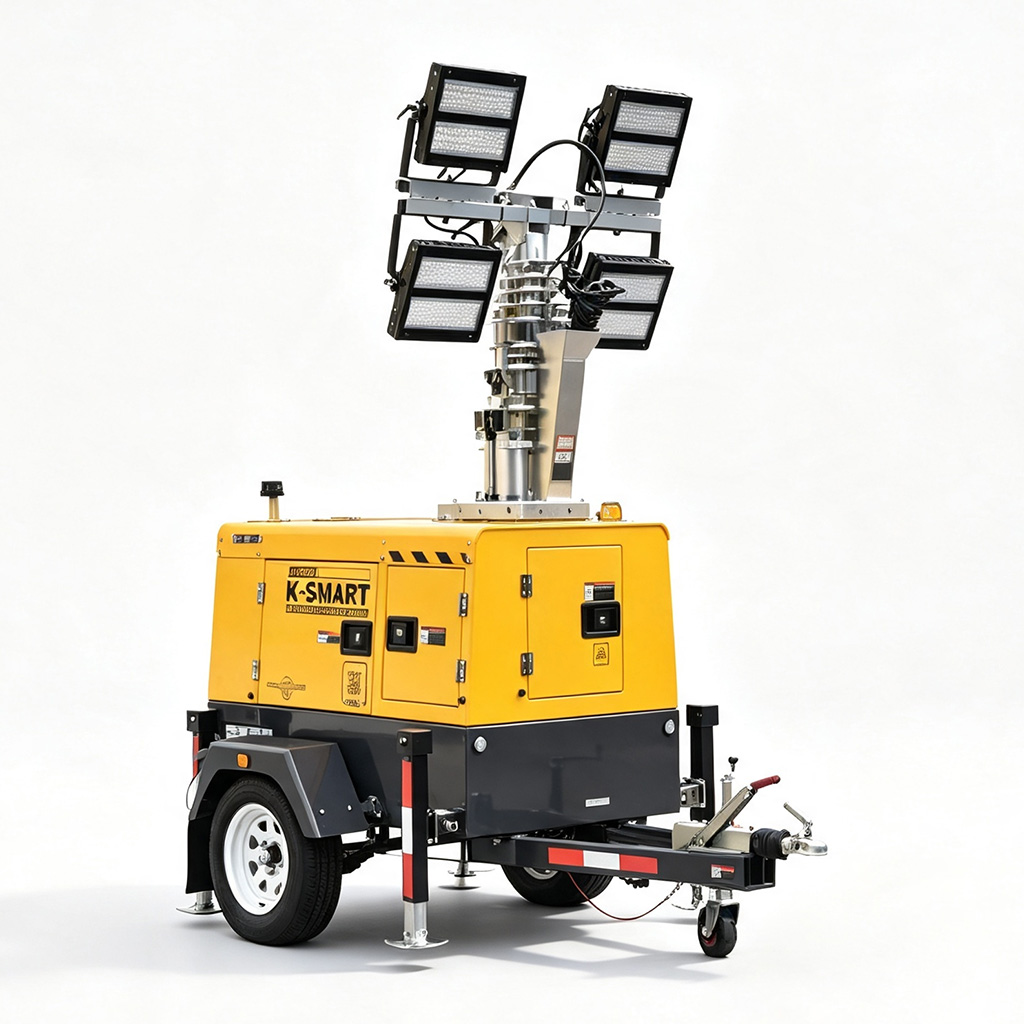

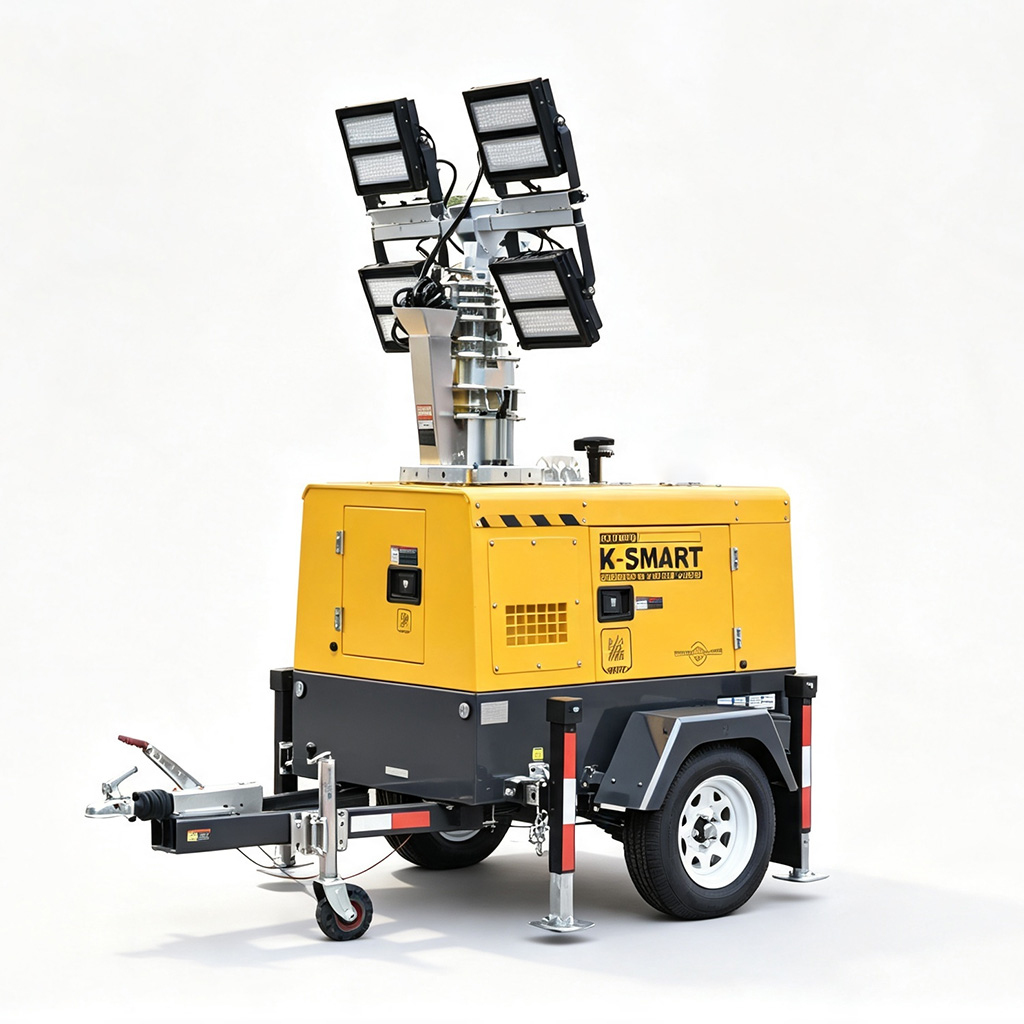

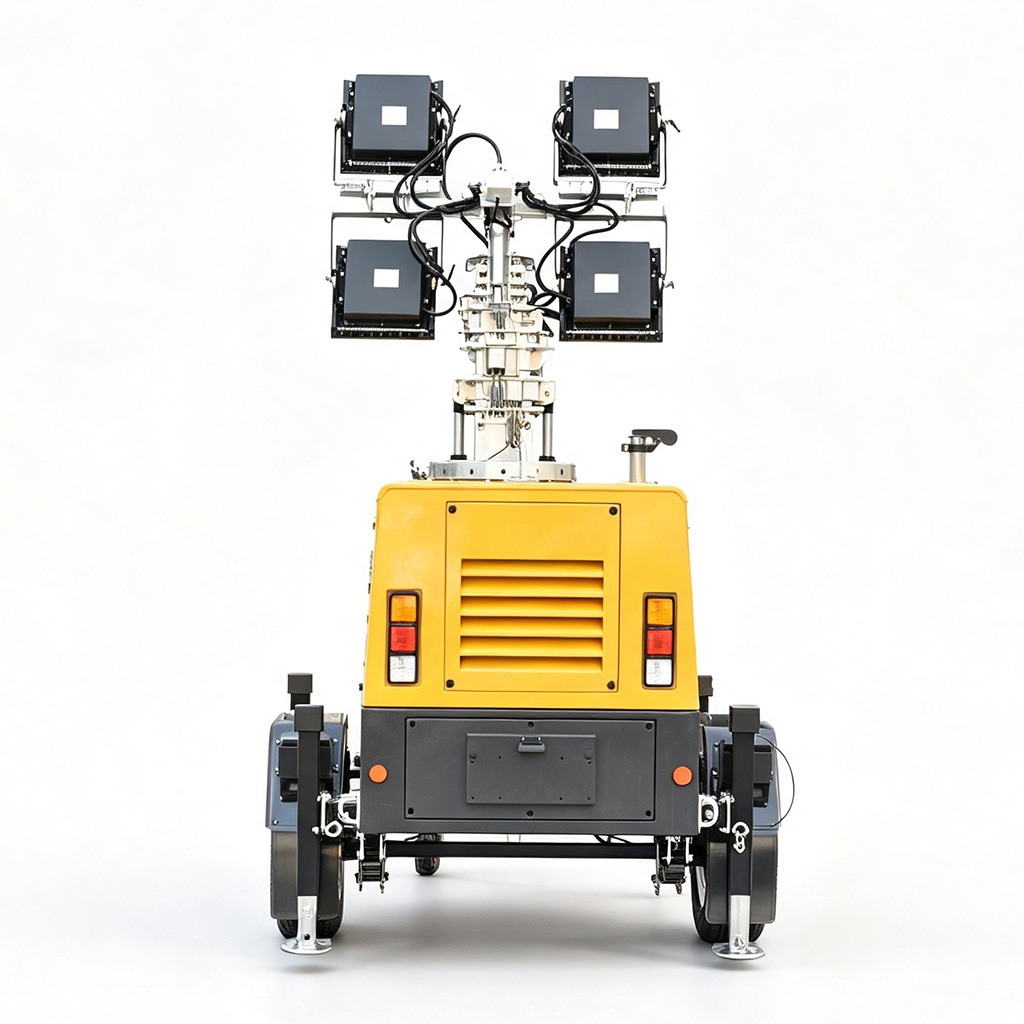

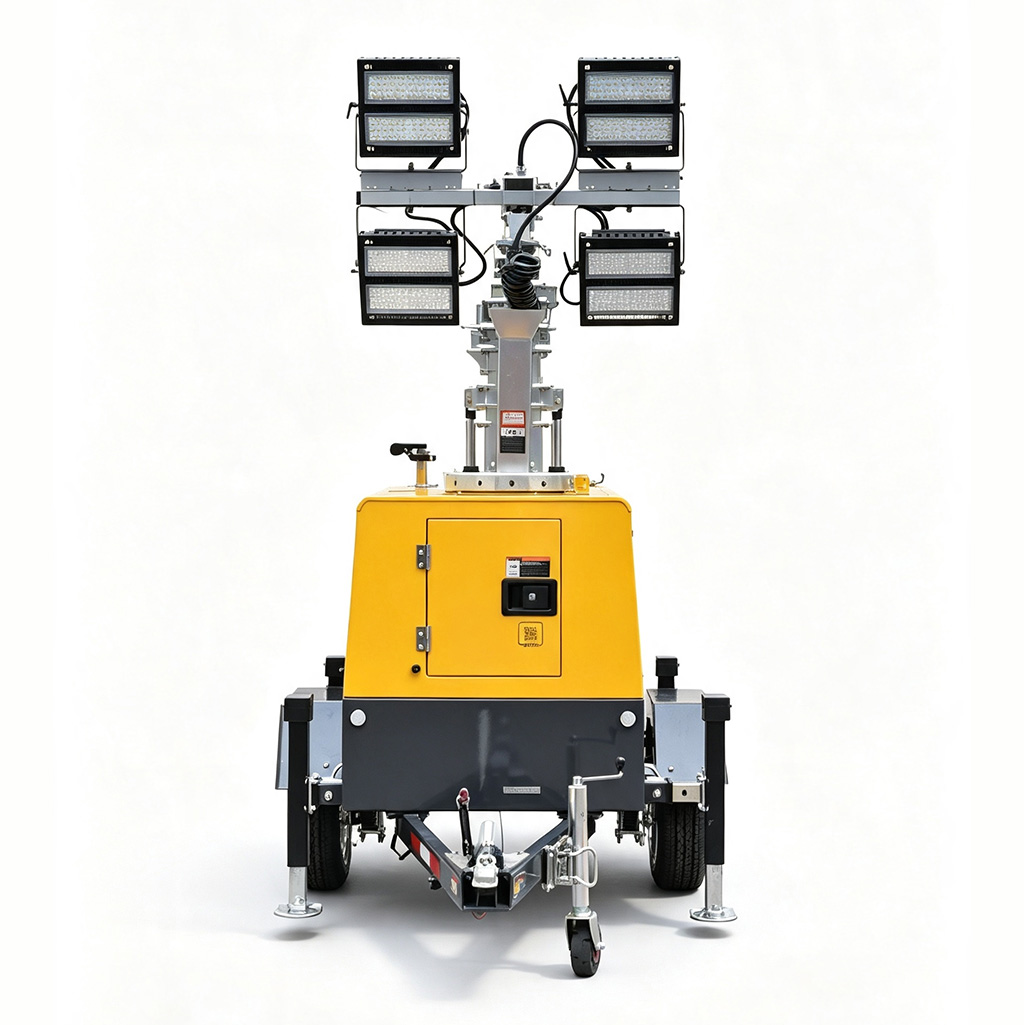

The K‑SMART is a trailer‑mounted diesel‑LiFePO4 hybrid mobile lighting tower, unique hybrid model in this range. Fitted with Kubota Z482 engine and 11.76 kWh LiFePO4 battery under DC48V system, it supports diesel charging and silent zero‑emission battery‑only operation.
Weighs 1300 kg with dimension 2850×1590×2500 mm. Road‑towable trailer chassis, 9‑meter hydraulic mast with 355° electric rotation & 90° electric tilt. 4×350W LED lamps deliver illumination up to 4009 ㎡. Ultra‑low fuel consumption: 0.56 L/h. Manual & timer modes available. Container‑friendly design, shared chassis parts with other models.
Ideal for noise‑sensitive sites: municipal repair, residential‑area construction, emergency rescue and rental fleets.
K-SMART is an advanced hybrid mobile lighting tower tailored for modern low-noise and environmentally compliant job sites. Unlike conventional diesel-only light towers, it adopts a unique diesel + LiFePO4 hybrid design, enabling switchable silent battery operation and eco-friendly zero-emission working mode. It perfectly solves the noise and emission restrictions of urban night construction, delivering highly flexible and cost-effective outdoor lighting solutions for various sensitive working scenarios.
Featuring a fully adjustable hydraulic lifting mast and wide-range electric angle adjustment, this light tower eliminates lighting dead zones and provides uniform, high-brightness wide-area illumination for long-duration outdoor operations. Optimized with energy-saving logic and ultra-low fuel consumption, it effectively cuts daily operating costs, making it an economical and high-return option for engineering teams and equipment rental businesses.
Designed with a standard road-towable trailer structure, the K-SMART lighting tower supports rapid on-site deployment, stable field fixation and easy containerized transportation for global delivery. It is the preferred silent hybrid lighting equipment for municipal maintenance, residential area night work, emergency disaster rescue, eco-restricted sites and professional rental fleets.
Thanks to its hybrid LiFePO4 battery system, silent battery‑only operation and ultra‑low fuel consumption, K‑SMART is specially built for noise‑restricted and emission‑sensitive job sites.
Hybrid LiFePO4 Battery System (Unique Selling Point) Equipped with 11.76 kWh LiFePO4 lithium‑iron‑phosphate battery pack. It can run on pure battery power: silent & zero‑exhaust emission, ideal for noise‑sensitive sites, residential areas and environmental‑restricted zones. DC48V direct‑current power system. Kubota Z482 engine charges battery on‑board. Dual working modes: diesel generator mode & battery‑only mode. Ultra‑low fuel consumption: only 0.56 L/h, greatly cuts operation fuel cost.
Premium Power & Control Components Original Kubota Z482 2‑cylinder naturally‑aspirated diesel engine, globally available spare parts, high reliability. Mecc Alte alternator + Smartgen HGM7110DC DC controller. Support Manual / Timer auto on‑off function.
High‑Performance LED Lighting 4×350W LED lamps, total luminous flux 238,000 Lms, illumination coverage up to 4009 ㎡ @ 5 lux. 9‑meter 9‑section hydraulic mast; 355° electric mast rotation + 90° electric light tilt, flexible beam adjustment to eliminate dark zones.
Trailer Chassis & Export‑Friendly Design Dimension:285015902500 mm, weight:1300 kg. Standard road‑towable trailer with 50mm ball hitch, 4 hydraulic stabilizers, forklift holes for quick loading. Container compatible: 3 units for 20GP,7 units for 40GP. Shared chassis parts with R4T‑KLED & R6T‑PLED for simple spare‑part management. 110L fuel tank for long‑hour diesel operation.
Best‑fit Applications Night construction near residential zones, municipal road repair, emergency rescue, environmentally‑controlled sites, noise‑sensitive projects, equipment rental fleets.
| Specification | Technical Data |
| Basic Information | |
| Model | K-SMART Hybrid Mobile Lighting Tower |
| Product Type | Trailer-mounted Diesel & LiFePO4 Hybrid Light Tower |
| Overall Dimension | 2850 × 1590 × 2500 mm |
| Total Weight | 1300 KG |
| Lighting System | |
| LED Light Configuration | 4 × 350W High-power LED Lamps |
| Total Luminous Flux | 238,000 LM |
| Lighting Coverage Area | 4009 ㎡ (5lux Illuminance) |
| Mast Height | 9m, 9-section Hydraulic Lifting Mast |
| Mast Adjustment | 355° Electric Rotation + 90° Electric Tilt |
| Power System | |
| Power Type | DC48V Diesel & LiFePO4 Hybrid Power System |
| Engine Model | Original Kubota Z482 Diesel Engine |
| Battery Capacity | 11.76kWh LiFePO4 Battery Pack |
| Fuel Consumption | 0.56 L/h, Ultra-low Fuel Consumption |
| Fuel Tank Capacity | 110 L |
| Control Mode | Manual Control / Timer Automatic Control |
| Chassis & Mobility | |
| Mobility Design | Road Towable Trailer with 50mm Ball Hitch |
| Stabilization System | 4 Hydraulic Outriggers for Fast Leveling & Stabilizing |
| Loading Method | Reserved Forklift Holes for Convenient Handling |
| Container Loading Capacity | 3 Units / 20GP Container; 7 Units / 40GP Container |
